Heavy Duty Manual Chain Hoist

Heavy Duty Manual Chain Hoist - BPHCH Series

Bear Claw® BPHCH series

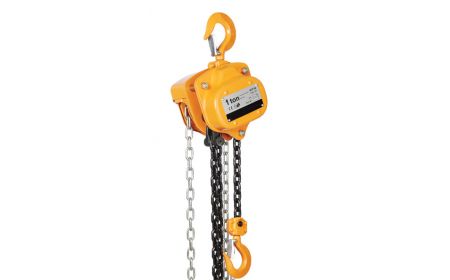

The Heavy Duty Manual Chain Hoist is lightweight and easy to use. These hoists are designed with low headroom for easy installation in confined areas.
Starting at: $226.62

See chart below and click a model number

Product Details

  • Construction: Heavy Duty Manual Chain Hoist features a lightweight, high strength grade 100 alloy steel construction. Designed to be 25% stronger than grade 80 chain. Includes galvanized pull chain with forged steel upper and lower hooks.
  • Size: Head room for different models ranges from 11-1/4” to 23-5/8” for compact design.
  • Service Range: Models are designed with lift heights that range from 10, 15, and 20 feet.
  • Note: Meets ANSI B30.16-2003. All lead times are approximate and are only estimates with no guarantee to a ship date.
  • Operation: Heat-treated spur gear efficiently designed to provide smooth load handling and low hand chain pull.
  • Capacity: This series offers capacities that range from 1000, 2000, 3000, 4000, 6000, and 10,000 lbs. Units are designed with a safety factor 4 times the rated capacity. Each unit is individually tested at 150% of the rated capacity.
  • Standard: Reinforced double paw brake system and larger diameter pawl springs ensure reliable braking.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred.

Documents
Heavy Duty Manual Chain Hoist - BPHCH series
Model No. Capacity (lbs.) Lift (ft.) Headroom (inches) Price
1) BPHCH-1-10 1,000 10 11-¼" $226.62
2) BPHCH-1-15 1,000 15 11-¼" $270.50
3) BPHCH-1-20 1,000 20 11-¼" $317.99

4) BPHCH-2-10 2,000 10 12-7/16" $260.72
5) BPHCH-2-15 2,000 15 12-7/16" $307.15
6) BPHCH-2-20 2,000 20 12-7/16" $355.80

Heavy Duty Manual Chain Hoist - BPHCH series (continued)
Model No. Capacity (lbs.) Lift (ft.) Headroom (inches) Price
7) BPHCH-3-10 3,000 10 13⅜" $340.02
8) BPHCH-3-15 3,000 15 13⅜" $403.42
9) BPHCH-3-20 3,000 20 13⅜" $466.69

10) BPHCH-4-10 4,000 10 14" $443.57
11) BPHCH-4-15 4,000 15 14" $532.62
12) BPHCH-4-20 4,000 20 14" $622.87

13) BPHCH-6-10 6,000 10 18-¾" $475.34
14) BPHCH-6-15 6,000 15 18-¾" $600.78
15) BPHCH-6-20 6,000 20 18-¾" $730.14

Heavy Duty Manual Chain Hoist - BPHCH series (continued)
Model No. Capacity (lbs.) Lift (ft.) Headroom (inches) Price
16) BPHCH-10-10 10,000 10 23⅝" $672.79
17) BPHCH-10-15 10,000 15 23⅝" $819.02
18) BPHCH-10-20 10,000 20 23⅝" $968.92
