Rail Dock Plate - Rail Car Dockboards - BRS Series

Beacon® BRB Series

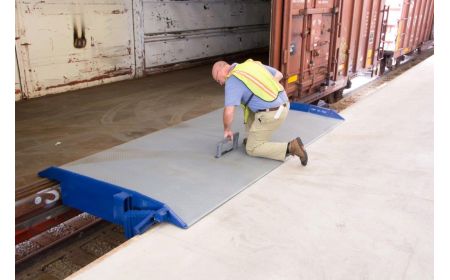

Beacon® Rail Dock Plate Technology delivers precision engineered railcar dock boards designed to provide safe and efficient railcar access solutions for industrial loading docks. Each railroad dock board is custom built to fit the specific requirements of your facility, ensuring compatibility with a wide variety of railway boxcars, including refrigerated railcars and those used in the manufacturing, paper and lumber industries.To ensure optimal performance and safety, every Beacon® rail dock plate is designed using detailed specifications provided through the Rail Dock Plate Worksheet. This essential tool helps determine the correct bend angles, capacity, width and length needed to match your dock and railcar interface.
Starting at: $6,413.00
Rail Dock Plate - BRB Series
Model No. Capacity Width Length Rail Dock Plate Worksheet Required for Quote Price
1) BRB15R6036 15,000 lbs 60" 36" Yes $6,413.00
2) BRB15R6048 15,000 lbs 60" 48" Yes Call for Quote
3) BRB15R6060 15,000 lbs 60" 60" Yes Call for Quote
4) BRB15R6072 15,000 lbs 60" 72" Yes Call for Quote
5) BRB15R6084 15,000 lbs 60" 84" Yes Call for Quote
6) BRB15R6096 15,000 lbs 60" 96" Yes Call for Quote
7) BRB15R7236 15,000 lbs 72" 36" Yes Call for Quote
8) BRB15R7248 15,000 lbs 72" 48" Yes Call for Quote
9) BRB15R7260 15,000 lbs 72" 60" Yes Call for Quote
10) BRB15R7272 15,000 lbs 72" 72" Yes Call for Quote
11) BRB15R7284 15,000 lbs 72" 84" Yes Call for Quote
12) BRB15R7296 15,000 lbs 72" 96" Yes Call for Quote
13) BRB15R8436 15,000 lbs 84" 36" Yes Call for Quote
14) BRB15R8448 15,000 lbs 84" 48" Yes Call for Quote
15) BRB15R8460 15,000 lbs 84" 60" Yes Call for Quote
16) BRB15R8472 15,000 lbs 84" 72" Yes Call for Quote
17) BRB15R8484 15,000 lbs 84" 84" Yes Call for Quote
18) BRB15R8496 15,000 lbs 84" 96" Yes Call for Quote
19) BRB15R9636 15,000 lbs 96" 36" Yes Call for Quote
20) BRB15R9648 15,000 lbs 96" 48" Yes Call for Quote
21) BRB15R9660 15,000 lbs 96" 60" Yes Call for Quote
22) BRB15R9672 15,000 lbs 96" 72" Yes Call for Quote
23) BRB15R9684 15,000 lbs 96" 84" Yes Call for Quote
24) BRB15R9696 15,000 lbs 96" 96" Yes Call for Quote
25) BRB15R10036 15,000 lbs 100" 36" Yes Call for Quote
26) BRB15R10060 15,000 lbs 100" 60" Yes Call for Quote
27) BRB15R10072 15,000 lbs 100" 72" Yes Call for Quote
28) BRB15R10084 15,000 lbs 100" 84" Yes Call for Quote
29) BRB15R10096 15,000 lbs 100" 96" Yes Call for Quote

30) BRB22R6036 22,000 lbs 60" 36" Yes Call for Quote
31) BRB22R6048 22,000 lbs 60" 48" Yes Call for Quote
32) BRB22R6060 22,000 lbs 60" 60" Yes Call for Quote
33) BRB22R6072 22,000 lbs 60" 72" Yes Call for Quote
34) BRB22R6084 22,000 lbs 60" 84" Yes Call for Quote
35) BRB22R6096 22,000 lbs 60" 96" Yes Call for Quote
36) BRB22R7236 22,000 lbs 72" 36" Yes Call for Quote
37) BRB22R7248 22,000 lbs 72" 48" Yes Call for Quote
38) BRB22R7260 22,000 lbs 72" 60" Yes Call for Quote
39) BRB22R7272 22,000 lbs 72" 72" Yes Call for Quote
40) BRB22R7284 22,000 lbs 72" 84" Yes Call for Quote
41) BRB22R7296 22,000 lbs 72" 96" Yes Call for Quote
42) BRB22R8436 22,000 lbs 84" 36" Yes Call for Quote
43) BRB22R8448 22,000 lbs 84" 48" Yes Call for Quote
44) BRB22R8460 22,000 lbs 84" 60" Yes Call for Quote
45) BRB22R8472 22,000 lbs 84" 72" Yes Call for Quote
46) BRB22R8484 22,000 lbs 84" 84" Yes Call for Quote
47) BRB22R8496 22,000 lbs 84" 96" Yes Call for Quote
48) BRB22R9636 22,000 lbs 96" 36" Yes Call for Quote
49) BRB22R9648 22,000 lbs 96" 48" Yes Call for Quote
50) BRB22R9660 22,000 lbs 96" 60" Yes Call for Quote
51) BRB22R9672 22,000 lbs 96" 72" Yes Call for Quote
52) BRB22R9684 22,000 lbs 96" 84" Yes Call for Quote
53) BRB22R9696 22,000 lbs 96" 96" Yes Call for Quote
54) BRB22R10036 22,000 lbs 100" 36" Yes Call for Quote
55) BRB22R10048 22,000 lbs 100" 48" Yes Call for Quote
56) BRB22R10060 22,000 lbs 100" 60" Yes Call for Quote
57) BRB22R10072 22,000 lbs 100" 72" Yes Call for Quote
58) BRB22R10084 22,000 lbs 100" 84" Yes Call for Quote
59) BRB22R10096 22,000 lbs 100" 96" Yes Call for Quote

Rail Dock Plate - BRB Series (continued)
Model No. Capacity Width Length Rail Dock Plate Worksheet Required for Quote Price
60) BRB40R6036 40,000 lbs 60" 36" Yes Call for Quote
61) BRB40R6048 40,000 lbs 60" 48" Yes Call for Quote
62) BRB40R6060 40,000 lbs 60" 60" Yes Call for Quote
63) BRB40R6072 40,000 lbs 60" 72" Yes Call for Quote
64) BRB40R6084 40,000 lbs 60" 84" Yes Call for Quote
65) BRB40R6096 40,000 lbs 60" 96" Yes Call for Quote
66) BRB40R7236 40,000 lbs 72" 36" Yes Call for Quote
67) BRB40R7248 40,000 lbs 72" 48" Yes Call for Quote
68) BRB40R7260 40,000 lbs 72" 60" Yes Call for Quote
69) BRB40R7272 40,000 lbs 72" 72" Yes Call for Quote
70) BRB40R7284 40,000 lbs 72" 84" Yes Call for Quote
71) BRB40R7296 40,000 lbs 72" 96" Yes Call for Quote
72) BRB40R8436 40,000 lbs 84" 36" Yes Call for Quote
73) BRB40R8448 40,000 lbs 84" 48" Yes Call for Quote
74) BRB40R8460 40,000 lbs 84" 60" Yes Call for Quote
75) BRB40R8472 40,000 lbs 84" 72" Yes Call for Quote
76) BRB40R8484 40,000 lbs 84" 84" Yes Call for Quote
77) BRB40R8496 40,000 lbs 84" 96" Yes Call for Quote
78) BRB40R9636 40,000 lbs 96" 36" Yes Call for Quote
79) BRB40R9648 40,000 lbs 96" 48" Yes Call for Quote
80) BRB40R9660 40,000 lbs 96" 60" Yes Call for Quote
81) BRB40R9672 40,000 lbs 96" 72" Yes Call for Quote
82) BRB40R9684 40,000 lbs 96" 84" Yes Call for Quote
83) BRB40R9696 40,000 lbs 96" 96" Yes Call for Quote
84) BRB40R10036 40,000 lbs 100" 36" Yes Call for Quote
85) BRB40R10048 40,000 lbs 100" 48" Yes Call for Quote
86) BRB40R10060 40,000 lbs 100" 60" Yes Call for Quote
87) BRB40R10072 40,000 lbs 100" 72" Yes Call for Quote
88) BRB40R10084 40,000 lbs 100" 84" Yes Call for Quote
89) BRB40R10096 40,000 lbs 100" 96" Yes Call for Quote

WarningPROP 65 WARNING

For California Residents: www.P65Warnings.ca.gov
Products on this page may lead to cancer or reproductive harm.

Product Details

  • Construction: Features all welded steel construction.
  • Size: Rail Dock Plate models come in a variety of widths ranging from 60" to 100" and lengths ranging from 36" to 96".
  • Scope: Ideal for facilities requiring durable, high-capacity railcar loading solutions with custom configurations that improve safety and efficiency.
  • Capacities: These railcar access solutions are a loading dock to railcar bridge functioning as a boxcar dock board and plate, available with service capacities of 15,000, 22,000, 40,000 including up to 60,000 lbs.
  • Standard: Most common standard rail car bed heights are 41" to 46", preferred dock height is 44". The older rail car bed height is 41". Refrigerated rail car heights vary from 46" to 52", preferred dock height is 49".
  • Usage: Rail car loading dock boards are tailored construction for precise fit based on dock height, car style and application. Available in flared or rectangular designs to match specific site requirements. Features a reinforced box understructure for enhanced strength and operator safety. Equipped with a heavy duty drop ring to ensure secure positioning during use. Designed to handle heavy capacities with appropriate bend angles, width and length to match operational needs.
  • Note: Beacon® custom rail dock boards help improve safety and material handling efficiency at rail access facilities. These units are ideal for warehouses, distribution centers, manufacturing plants and other operations with direct railcar access.
