Rail Dock Leveler

Rail Dock Leveler - Rail Car Loading Leveler - HSD Series

Beacon® HSD Series

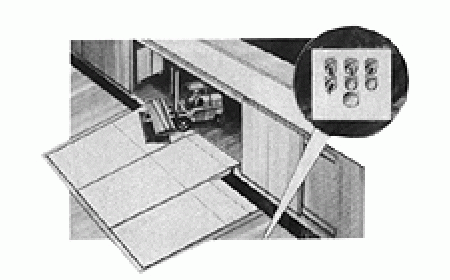

Beacon® loading Rail Dock Leveler is a push-button-controlled unit that compensates for uneven heights between the railroad car bed and the dock. This Rail Car Loading Leveler assists in railcar loading and unloading.
Call for custom quote for your application

See chart below and click a model number

Product Details

  • Construction: Sold in Bulk.
  • Size: Side by side deck widths: 6' (one unit), 12' (two units) and 18' (three units).
  • Service Range: A 42" continuous slide deck lip and full-range toe guards are standard.
  • Electrical: This Rail Dock Leveler series features a 2-Hp motor, 208/240/440 V 3 phase, 60 HZ. Other electrical options are available as an up-charge.
  • Operation: Two hydraulic cylinders control the dock equipment and dock ramp vertical deck movement, and a hydraulic cylinder controls the slide deck lip.
  • Capacities: Models feature capacities ranging from 20,000 to 30,000 lbs.
  • Standard: The Rail Dock Leveler accommodates the most common standard rail car bed heights, 41" to 46", preferred dock height is 44". The older rail car bed height is 41". Refrigerated rail car heights vary from 46" to 52", preferred dock height is 49".
  • Limited Warranty: Includes a five-year structural, three-year hydraulics and one-year electrical. Extended warranties available.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
  • Note: Size and movements are nominal dimensions.


Rail Dock Leveler - HSD Series
Model No. Description Price
1) HSD260X-20 (72" W x 32" D) (10' actual length) 20,000 lb. rollover capacity $Call
2) HSD260X-30 (72" W x 32" D) (10' actual length) 30,000 lb. rollover capacity $Call
3) HSD260X3-20 (217" W x 32" D) (10' actual length) 20,000 lb. rollover capacity $Call
4) HSD260X3-30 (217" W x 32"D) (10' actual length) 30,000 lb. rollover capacity $Call

Call Beacon: 800-454-7159314-487-7600
