Towable Crane

Towable Crane - Trailer Hitch Hoist - BH-TRAIL series

Bear Claw® BH-TRAIL Series

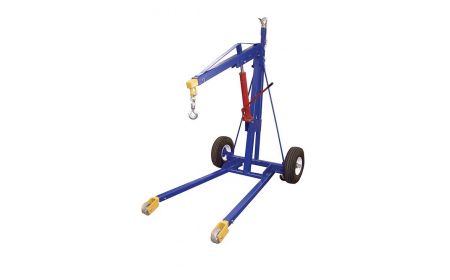

The Towable Crane - Trailer Hitch Hoist is designed to be towed by a truck or car to multiple job sites for ultimate versatility. This unit includes a class 2 ball coupler as well as safety chains that can be used with most hitches. The series features a telescoping lift arm and adjustable legs as well as a removable hack handle. This unit is portable with two 18" wheels, two 4" x 2" swivel rear casters, and two 5" x 2" front swivel casters. The boom has a swivel clevis hook and safety latch.
Starting at: $2,532.37

See chart below and click a model number

Product Details

  • Construction: Towable Crane features welded steel construction.
  • Size: Units are 47-1/2" wide x 72" long overall. The arm length ranges from 53-1/2" to 77-1/2".
  • Service Range: The up/down stroke is 30" to 91".
  • Color: Models are painted Beacon blue with Beacon yellow accents.
  • Weight: Units weigh 465 lbs.
  • Operation: This crane unit should not be moved while loaded.
  • Capacity: 4,000 lbs.
  • Options: A brake light kit and a wiring harness are available as Towable Crane options; contact Beacon for details.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
  • Note: Testing, adjustments, training and scheduled maintenance procedures by others.

Bear Claw® Towable Crane - BH-TRAIL Series
Model No. Up/Down Stroke Arm Length Overall Size (W x L) Capacity (LBS.) Front Casters Rear Casters Price
1) BH-TRAIL 30" to 91" 53½" to 77½" 47½"x 72" 4,000 4"x2" Swivel 5"x2" Rigid $2,532.37
