Jib Lift

Jib Lift - Small Work Area Jib - BLIFTER series

Bear Claw® BLIFTER Series

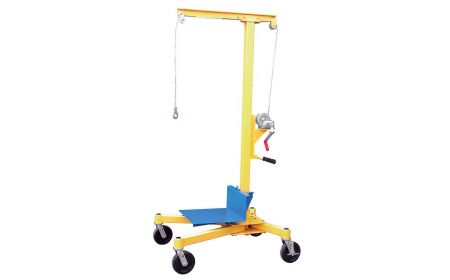

The Jib Lift - Small Work Area Jib is designed to raise and maneuver heavy items. This product includes an overhead boom and a lifting platform. This unit rolls on 8" x 2" phenolic swivel casters. This series knocks down into 6 pieces, enabling it to be stored in tight spaces.
Starting at: $2,163.60

See chart below and click a model number

Product Details

  • Construction: Jib Lift features welded steel construction.
  • Projection: The top boom beam has an overall length of 38" with a boom reach of 25".
  • Size: This unit measures 37" wide x 48-1/2" long x 90" high. The platform measures 20" wide x 20" long. Distance between front outriggers is 27-5/8".
  • Service Range: This unit has a removable platform with a service range of 14-3/4" lowered to 70" raised.
  • Overall Width: The inside dimension between front outriggers is 27-5/8"
  • Color: Units are painted Beacon yellow with a Beacon blue platform.
  • Weight: Models weigh 310 lbs.
  • Operation: Manual hand winch operation. This portable lift is not to be moved while loaded.
  • Capacity: Features a 500-lb. capacity.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
  • Note: Testing, adjustments, training and scheduled maintenance procedures by others.


Bear Claw® Jib Lift - BLIFTER Series
Model No. Overall Size (W x L x H) Platform Size (W x L) Service Range Overall Boom Length Boom Reach Distance Between Outriggers Capacity (LBS) Price
1) BLIFTER-2 37"x48½"x90" 20"x20" 14¾" to 70" 38" 25" 27⅝" 500 $2,163.60
