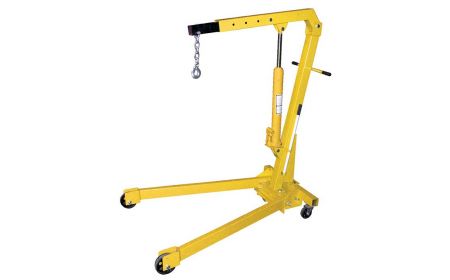

Engine Hoist

Bear Claw® BEHN Series
This Engine Hoist - Shop Crane is perfect for hundreds of lifting applications. This series features a telescopic boom for multiple lifting heights and capacities. The high-capacity hydraulic cylinder provides for faster lifting and features a large-diameter ram to withstand angled loads when lifting. Units roll on two swivel and two rigid casters.
Starting at:
$366.92
Product Details
- Construction: Engine Hoist features heavy duty steel construction.
- Size: Units are available in two designs: The "C" series and the "T" series. The "C" series has foldable legs for storage and the "T" series has telescopic, non-foldable legs.
- Service Range: The different units offer a minimum boom length range of 30-1/2" up to a maximum boom length of 76-1/4". As the boom length is extended the capacity is diminished as noted in each model number. Different boom heights range from 3" all the way up to 102".
- Overall Width: The "C" series is 33-1/2" wide x 44" long x 60-1/2" high.
- Color: Models are painted Beacon yellow.
- Scope: All the BEHN models include an adjustable boom for multiple lifting capacities.
- Operation: The boom of this unit is raised and lowered with a manual hydraulic hand pump. The engine hoist should not be moved while loaded.
- Capacity: The Engine Hoist models can have a capacity ranging from 500 lbs. to 6,000 lbs. when the boom is retracted in to create the least amount of cantilever stress.
- Surcharge: Tariffs or surcharges may apply to current published pricing.
Bear Claw® Engine Hoist - BEHN Series | |||||
Model No. | Description | Capacity (LBS) | Boom Length | Boom Height | Price |
1) BEHN-20-C-500 | Foldable Legs | 500 | 47" | 10½' to 82" | $366.92 |
2) BEHN-20-C-1000 | Foldable Legs | 1,000 | 43¾" | 14½" to 80" | $366.92 |
3) BEHN-20-C-1500 | Foldable Legs | 1,500 | 40" | 17½" to 78" | $366.92 |
4) BEHN-20-C-2000 | Foldable Legs | 2,000 | 36⅝" | 20½" to 76" | $366.92 |
5) BEHN-40-C-1000 | Foldable Legs | 1,000 | 30½" | 3" to 102" | $502.23 |
6) BEHN-40-C-2000 | Foldable Legs | 2,000 | 53½" | 9" to 96-9/16" | $502.23 |
7) BEHN-40-C-3000 | Foldable Legs | 3,000 | 47" | 15" to 91¼" | $502.23 |
8) BEHN-40-C-4000 | Foldable Legs | 4,000 | 40" | 21" to 85¾" | $502.23 |
9) BEHN-40-T-1000 | Non-Foldable Telescopic Legs | 1,000 | 61½" | 3" to 91-13/16" | $468.10 |
10) BEHN-40-T-2000 | Non-Foldable Telescopic Legs | 2,000 | 54" | 9" to 86⅜" | $468.10 |
11) BEHN-40-T-3000 | Non-Foldable Telescopic Legs | 3,000 | 47" | 15" to 81" | $468.10 |
12) BEHN-40-T-4000 | Non-Foldable Telescopic Legs | 4,000 | 40" | 21" to 85¾" | $468.10 |
Bear Claw® Engine Hoist - BEHN Series (continued) |
|||||
Model No. | Description | Capacity (LBS) | Boom Length | Boom Height | Price |
13) BEHN-60-T-2000 | Non-Foldable Telescopic Legs | 2,000 | 76¼" | 6¼" to 96-9-16" | $887.43 |
14) BEHN-60-T-3000 | Non-Foldable Telescopic Legs | 3,000 | 68" | 11½" to 92⅜" | $887.43 |
15) BEHN-60-T-4000 | Non-Foldable Telescopic Legs | 4,000 | 60" | 16-11/16" to 88-3/16" | $887.43 |
16) BEHN-60-T-6000 | Non-Foldable Telescopic Legs | 6,000 | 51⅞ | 21" to 85¾" | $887.43 |
