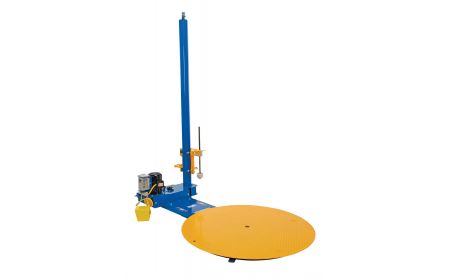

Stretch Wrap Machine

Beacon® BSWA Series

Stretch Wrap Machine is designed to increase shipping department efficiency as well as productivity at the end of a production line. The Pallet Shrink Wrap Machine unit has a counter balanced stretch film mast and a powered turntable up to 70" in diameter. The mast is raised and lowered via a foot pedal. This equipment features 1 film rod with special spacers that can be utilized with rolls of any height of stretch wrap between 10" and 20".
Starting at: $5,995.89

Product Details

  • Size: Units are available with turntable diameters of 50" or 70" and turntable heights between 2-1/16" and 2-3/16". Models are designed with maximum load diameter of 64" or 84".
  • Powered: Power turntable offers and runs at variable speeds of 3 to 12 RPM.
  • Power: The unit is powered by a 115V, 1/2 HP motor with soft start/stop and variable speed control. (220V AC, 1 Ph available as an option).
  • Weight: Models weigh from 430 to 1,659 lbs.
  • Note: The unit ships knockdown, and some assembly is required.
  • Operation: The unit is easy to operate by depressing the foot pedal. The friction brake controls the film wrap tension that is adjustable during the wrapping process. Move the carriage up or down to place the film in the desired location.
  • Capacity: Models are available with capacities of 4,000 lbs.
  • Options: Stretch Wrap Machine options include scales, a powered mast, a counter, and auto indexing. Approach ramps are available for electric or manual pallet trucks, as well as for optional scales.
  • Materials: This unit will accept 10 inch to 20 inch film material.
  • Surcharge: Tariffs or surcharges may apply to current published pricing.

Documents

WARNING This product can expose you to lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm.
For more information go to: www.P65Warnings.ca.gov

Options


Stretch Wrap Machine - BSWA Series
Model# Capacity (LBS) Carousel Diameter Wrap Height Turntable Height Price
1) BSWA-50 50" 4,000 78" 2-1/16" $5,995.89
2) BSWA-70 70" 4,000 78" 2-3/16" $8,831.56
Stretch Wrap Machine - BSWA series - OPTION
Model# Description Price
3) BSWA-VCC-208/230-1 VOLTAGE CHANGE TO 208/230 VOLT, SINGLE (1) PHASE $629.98
4) BSWA-VCC-208/230-3 VOLTAGE CHANGE TO 208/230 VOLT, THREE (3) PHASE $629.98
5) BSWA-VCC-460-3 VOLTAGE CHANGE TO 460 VOLT, THREE (3) PHASE $629.98
6) BSWA-50-R-4848 48"Wx3915/16"Lx2"H APPROACH RAMP OPTION FOR SWA-50 $715.16
7) BSWA-70-R-4848 48"Wx3915/16"Lx2"H APPROACH RAMP OPTION FOR SWA-70 $740.34
8) BSWA-50-SCALE DIGITAL SCALE OPTION FOR SWA-50 (ADDS 3-½" TO TURNTABLE HEIGHT-FACTORY INSTALLED) $6,191.88
9) BSWA-70-SCALE DIGITAL SCALE OPTION FOR SWA-70 (ADDS 3-½" TO TURNTABLE HEIGHT-FACTORY INSTALLED) $7,595.86
10) BSWA-50-R-4860-SCL APPROACH RAMP FOR SCALE OPTION (SWA-50) $1,031.81
11) BSWA-70-R-4860-SCL APPROACH RAMP FOR SCALE OPTION (SWA-70) $1,052.87
12) BSWA-COUNT COUNTER OPTION, KEEP TRACK OF CAROUSEL ROTATION $540.46
13) BSWA-NRTL-COMP INCLUDES COMPONENTS APPROVED BY A NATIONALLY-RECOGNIZED TESTING LAB (NRTL) $407.89
14) BSWA-INDEX AUTO-INDEXING 90°, 120°, OR 180° $892.72
15) BSWA-CG CHAIN GUARD FOR POWERED MAST OPTION $553.63
16) BSWA-MST-FLR FLOOR MOUNTED MAST BRACKET FOR STAND-ALONE APPLICATIONS. (SWA-50 & -70 MASTS) $89.98
17) BSWA-FILM 20"Hx80 ga.x6,000'x3" CORE (ONE ROLL) $159.81
18) BSWA-5070LP-PMO POWERED MAST OPTION-FACTORY INSTALLED $2,821.13
19) BSWA-5070LP-PMO-RF 115V POWERED MAST OPTION (RETROFIT-FIELD INSTALLED) $3,100.69
20) BSWA-5070LP-M-RF MANUAL MAST OPTION (RETROFIT-FIELD INSTALLED) $1,500.60
21) BPMO-VCC-208/230-1 VOLTAGE CHANGE TO 208/230 VOLT, SINGLE (1) PHASE $Call
22) BPMO-VCC-208/230-3 VOLTAGE CHANGE TO 208/230 VOLT, THREE (3) PHASE $Call
23) BPMO-VCC-460-3 VOLTAGE CHANGE TO 460 VOLT, THREE (3) PHASE $Call
