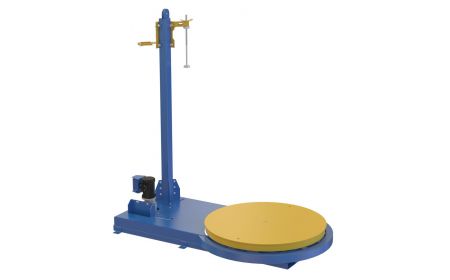

Medium Duty Machine Stretch Wrap

Medium Duty Machine Stretch Wrap - BSWA series

Beacon® BSWA series

This Medium Duty Machine Stretch Wrap is used to increase productivity by allowing the user to shrink wrap pallets and other goods quickly and efficiently. This unit comes standard with a power turntable and a counter balanced film mast.
Starting at: $8,473.87

See chart below and click a model number

Product Details

  • Construction: Steel Construction. Counter balanced stretch film mast.
  • Powered: Power carousel offers speeds of 3 to 12 RPM.
  • Operation: Press the foot pedal to move the mast up and down. The friction brake controls the film wrap tension that is adjustable during the wrapping process. Hand operated carriage to move up or down to place the film in the desired location.
  • Capacity: Models are available with capacities of 5,000 lbs.
  • Options: Option: The Optional PMO unit comes standard with a powered mast, factory installed. Hand held control will raise and lower the film and the foot pedal will control the turntable.
  • Materials: This unit will accept 10 inch to 20 inch film material.

Documents



Medium Duty Machine Stretch Wrap - BSWA series
Model No. Capacity (lbs.) Turntable Diameter Turntable Height Max Load Diameter Max Wrap Height Price
1) BSWA-54 5,000 54" 11-1/16" 90" 80" $8,473.87
2) BSWA-60 5,000 60" 11-1/16" 90" 80" $8,856.77
Medium Duty Machine Stretch Wrap - BSWA series - OPTION
Model No. Description Price
3) BSWA-5460-PMO POWERED MAST OPTION (54" & 60" DIAMETER)-FACTORY INSTALLED $3,628.90
4) BSWA-5460-PMO-RF 115V POWERED MAST OPTION (RETROFIT-FIELD INSTALLED) $3,684.86
5) BSWA-54-SCALE DIGITAL SCALE OPTION FOR SWA-54 (ADDS 3½" TO TURNTABLE HEIGHT-FACTORY INSTALLED) $7,783.23
6) BSWA-60-SCALE DIGITAL SCALE OPTION FOR SWA-60 (ADDS 3½" TO TURNTABLE HEIGHT-FACTORY INSTALLED) $8,106.35
7) BSWA-COUNT COUNTER OPTION, KEEP TRACK OF CAROUSEL ROTATIONS $529.08
8) BSWA-NRTL-COMP UL APPROVED COMPONENTS $399.34
9) BSWA-INDEX AUTO-INDEXING 90°, 120°, OR 180° $873.76
