Hydraulic Lift Table

Hydraulic Lift Table - High Capacity Scissor Lift - BMLT Series

Beacon® BMLT Series

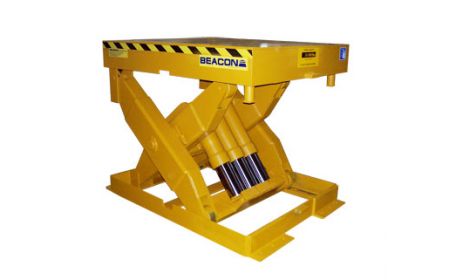

This heavy duty Hydraulic Lift Table technology is an electro-hydraulic unit that features a smooth steel platform. Each unit is supplied with standard straight toe guards for surface mounting. If pit mounting is required, please specify when ordering, and beveled toe guards will be supplied at no charge. Call for optional electric toe guard pricing. These models also have cylinder rod end protectors and dual safety restraint maintenance bars.
Call for custom quote for your application

See chart below and click a model number

Product Details

  • Projection: For optional beveled toe guards add 8" to the width and length. For optional straight toe guards with electric toe guard tape switch add 4" to the width and length. Specify the option during quoting for special pricing.
  • Size: Models come with standard platform sizes ranging from 48" x 60" to 48" x 108" and maximum platform sizes ranging from 72" x 84" to 72" x 132".
  • Service Range: These Hydraulic Lift Table units have lowered heights of 16" or 20" and a variety of raised heights ranging from 46" to 92".
  • Electrical: 230 / 480 V AC, 3 Phase, 60 Hz is standard. Other electrical options are available.
  • Powered: Optional Air (Rotary Air/Oil or Reciprocating Air/Oil) is available at an additional charge.
  • Installation: Surface or pit mount will end up with different overall heights. The three vertical geometric properties to be aware of is the (1) Lowered height (2) Travel (3) Overall height. When mounting in a pit, your travel will end up as your overall height.
  • Weight: The Hydraulic Lift Table series comes in a variety of weights ranging from 3,100 to 5,200 lbs.
  • Scope: It is the customer's responsibility to meet all federal, state and local codes regarding height restrictions and safety requirements.
  • Usage: This item is made to order; therefore, delivery times are not guaranteed. Production schedules may fluctuate due to supply chain dynamics or unforeseen circumstances. Fulfillment times may vary and lead times are quoted as approximate only. A signed approval drawing is required prior to production. Freight, site preparation, installation and training are not included. The customer is responsible for ensuring the correctness of fit.
  • Capacity: Models are available with a variety of capacities ranging from 15,000 to 30,000 lbs. Published capacities are rated as evenly distributed when the load is applied in the lowered position and then raised. Any applied load in the raised position, centered, end or side derates the published capacity, contact Beacon for specifications.
  • Standard: Smooth steel plate deck surface.
  • Options: Steel treadplate deck surface.
  • Limited Warranty: To keep the Hydraulic Lift Table warranty valid you cannot cantilever the geometric ratio weight beyond the center of gravity. All units are quoted the capacity within its deck size and must keep with a uniformly distributed load.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
  • Note: Payment Terms: This product is special and requires a 20% deposit at time of order, 20% prior to shipment and balance net 30 with approved credit.

Documents


Options


Hydraulic Lift Table - BMLT Series
Model No. Travel Cap Lbs Axle Load Max, Concentrated Platform Std. Platform Max. Base Lowered Height (inches) Raised Height (inches) Approx Up Speed Motor HP Cyl. Note Price
1) BMLT-15-30 30" 15000 12000 48x60 72x84 48x60 16 46 24 5 2 A $Call
2) BMLT-18-30 30" 18000 16000 48x60 72x84 48x60 16 46 24 5 2 A $Call
3) BMLT-20-30 30" 20000 16000 48x60 72x84 48x60 20 50 24 5 2 A $Call
4) BMLT-25-30 30" 25000 24000 48x60 72x84 48x60 20 50 35 5 3 A $Call
5) BMLT-30-30 30" 30000 24000 48x60 72x84 48x60 20 50 35 5 3 A $Call

6) BMLT-15-36 36" 15000 12000 48x60 72x84 48x60 16 52 30 5 2 A $Call
7) BMLT-18-36 36" 18000 16000 48x60 72x84 48x60 16 52 30 5 2 A $Call
8) BMLT-20-36 36" 20000 16000 48x60 72x84 48x60 20 56 30 5 2 A $Call
9) BMLT-25-36 36" 25000 24000 48x60 72x84 48x60 20 56 40 5 3 A $Call
10) BMLT-30-36 36" 30000 24000 48x60 72x84 48x60 20 56 40 5 3 A $Call

11) BMLT-15-42 42" 15000 12000 48x72 72x96 48x72 16 58 25 5 2 A $Call
12) BMLT-18-42 42" 18000 16000 48x72 72x96 48x72 16 58 25 5 2 A $Call
13) BMLT-20-42 42" 20000 16000 48x72 72x96 48x72 20 62 25 5 2 A $Call
14) BMLT-25-42 42" 25000 24000 48x72 72x96 48x72 20 62 35 5 3 A $Call
15) BMLT-30-42 42" 30000 24000 48x72 72x96 48x72 20 62 35 5 3 A $Call

Hydraulic Lift Table - BMLT Series (continued)

Model No. Travel Cap Lbs Axle Load Max, Concentrated Platform Std. Platform Max. Base Lowered Height (inches) Raised Height (inches) Approx Up Speed Motor HP Cyl. Note Price
16) BMLT-15-48 48" 15000 12000 48x72 72x96 48x72 16 64 30 5 2 A $Call
17) BMLT-18-48 48" 18000 16000 48x72 72x96 48x72 16 64 30 5 2 A $Call
18) BMLT-20-48 48" 20000 16000 48x72 72x96 48x72 20 68 30 5 2 A $Call
19) BMLT-25-48 48" 25000 24000 48x72 72x96 48x72 20 68 40 5 3 A $Call
20) BMLT-30-48 48" 30000 24000 48x72 72x96 48x72 20 68 40 5 3 A $Call

21) BMLT-18-54 54" 18000 16000 48x84 72x108 48x84 16 70 40 5 2 A $Call
22) BMLT-20-54 54" 20000 16000 48x84 72x108 48x84 20 74 40 5 2 A $Call
23) BMLT-25-54 54" 25000 24000 48x84 72x108 48x84 20 74 55 5 3 A $Call
24) BMLT-30-54 54" 30000 24000 48x84 72x108 48x84 20 74 55 5 3 A $Call
25) BMLT-15-54 54" 15000 12000 48x84 72x108 48x84 16 70 40 5 2 A $Call

26) BMLT-15-60 60" 15000 12000 48x84 72x108 48x84 16 76 45 5 2 A $Call
27) BMLT-18-60 60" 18000 16000 48x84 72x108 48x84 16 76 45 5 2 A $Call
28) BMLT-20-60 60" 20000 16000 48x84 72x108 48x84 20 80 45 5 2 A $Call
29) BMLT-25-60 60" 25000 24000 48x84 72x108 48x84 20 80 60 5 3 A $Call
30) BMLT-30-60 60" 30000 24000 48x84 72x108 48x84 20 80 60 5 3 A $Call

Hydraulic Lift Table - BMLT Series (continued)

Model No. Travel Cap Lbs Axle Load Max, Concentrated Platform Std. Platform Max. Base Lowered Height (inches) Raised Height (inches) Approx Up Speed Motor HP Cyl. Note Price
31) BMLT-15-72 72" 15000 12000 48x108 72x132 48x108 16 88 45 5 2 A $Call
32) BMLT-18-72 72" 18000 16000 48x108 72x132 48x108 16 88 45 5 2 A $Call
33) BMLT-20-72 72" 20000 16000 48x108 72x132 48x108 20 92 45 5 2 A $Call
34) BMLT-25-72 72" 25000 24000 48x108 72x132 48x108 20 92 60 5 3 A $Call
35) BMLT-30-72 72" 30000 24000 48x108 72x132 48x108 20 92 60 5 3 A $Call
Notes:
A: *Standard platforms only. **See options. ***Load that can be rolled over the side or end in any raised position. (Standard platform only.)
