Electric Scissor Lift
Electric Scissor Lift
Beacon
®
BTSL Series

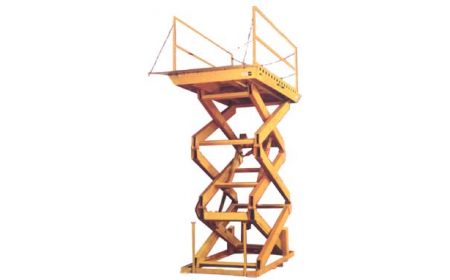

The high-travel Electric Scissor Lift engineering technology is a triple electro hydraulic unit. This Hydraulic Lifting Table series features a high-pressure gear pump and a hydraulic flow limiter at the base of each cylinder. This unit also features mechanical upper travel stops and safety restraint maintenance bars.
Starting at:
$
34,857.36
See chart below and click a model number
Product Details
Construction:
This product features heavy-duty steel construction.
Projection:
For optional beveled toe guards add 8" to the width and length. For optional straight toe guards with electric toe guard tape switch add 4" to the width and length. Specify the option during quoting for special pricing.
Size:
The series is available in a variety of standard platform sizes ranging from 30" x 42" to 60" x 120" and in maximum platform sizes ranging from 48" x 66" to 84" x 144". The base frames range from 30" x 42" to 60" x 112".
Service Range:
The unit is available with lowered heights ranging from 14-1/4" to 54" and with raised heights ranging from 86-1/4" to 270".
Operating Range:
It is the customers responsibility to meet all federal, state and local codes regarding height restrictions and safety requirements.
Installation:
Surface or pit mount will end up with different overall heights. The three vertical geometric properties to be aware of is the (1) Lowered height (2) Travel (3) Overall height. When mounting in a pit, your travel will end up as your overall height.
Weight:
Models are available in a variety of weights ranging form 2,100 to 9,000 lbs.
Scope:
This unit is supplied with standard straight toe guards for surface mounting. If pit mounting is required, please specify when ordering and beveled toe guards will be supplied at no charge. Call for optional electric toe guard pricing.
Capacity:
The series comes in capacities of 3,000 or 6,000 lbs. Published capacities are rated as evenly distributed when the load is applied in the lowered position and then raised. Any applied load in the raised position, centered, end or side derates the published capacity, contact Beacon for specifications.
Standard:
Smooth steel plate deck surface.
Options:
The Electric Scissor Lift has an optional upper travel limit switch available. Steel treadplate deck surface.
Limited Warranty:
To keep the warranty valid you cannot cantilever the geometric ratio weight beyond the center of gravity. All units are quoted the capacity within its deck size and must keep with a uniformly distributed load.
Surcharge:
Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
Usage:
This item is made to order; therefore, delivery times are not guaranteed. Production schedules may fluctuate due to supply chain dynamics or unforeseen circumstances. Fulfillment times may vary and lead times are quoted as approximate only. A signed approval drawing is required prior to production. Freight, site preparation, installation and training are not included. The customer is responsible for ensuring the correctness of fit.
Note:
Payment Terms: This product is special and requires a 20% deposit at time of order, 20% prior to shipment and balance net 30 with approved credit.
BTSL-30-072
Product Video
Documents
BTSL-Tech-Sheet
BTSL-Scissor-Lift-Survey-Sheet
BTSL-60-144-EP-Quick Start Guide
Electrical-Voltage-International
NEMA-Enclosure-Types
Load-Transfer-Arrangements
Prop. 65 WARNING
Options
Electric Scissor Lift - BTSL Series
Model No.
Travel (inches)
Cap Lbs
Edge Load Static
Edge Load Rolling
Platform Std.
Platform Max.
Base
Lowered Height (inches)
Raised Height (inches)
Approx Up Speed
Motor HP
Scissor Lift Survey Sheet Required for Quote
Note
Price
1)
BTSL-30-072
72
3000
1500
1000
30x42
48x66
30x42
14.25
86.25
35
1.5
Yes
A
$34,857.36
2)
BTSL-60-072
72
6000
3000
2000
30x42
48x66
30x42
21.25
93.25
40
1.5
Yes
A
Call for Quote
3)
BTSL-30-096
96
3000
1500
1000
30x48
48x72
30x48
14.25
110.25
40
1.5
Yes
A
Call for Quote
4)
BTSL-60-096
96
6000
3000
2000
30x48
48x72
30x48
21.25
117.25
50
1.5
Yes
A
Call for Quote
5)
BTSL-30-120
120
3000
1500
1000
30x60
48x84
30x60
14.25
134.25
40
3
Yes
A
Call for Quote
6)
BTSL-60-120
120
6000
3000
2000
30x60
48x84
30x60
21.25
141.25
80
3
Yes
A
Call for Quote
Electric Scissor Lift - BTSL Series (continued)
Model No.
Travel (inches)
Cap Lbs
Edge Load Static
Edge Load Rolling
Platform Std.
Platform Max.
Base
Lowered Height (inches)
Raised Height (inches)
Approx Up Speed
Motor HP
Scissor Lift Survey Sheet Required for Quote
Note
Price
7)
BTSL-30-144
144
3000
1500
1000
48x72
60x96
48x72
19.25
163.25
25
4.8
Yes
A
Call for Quote
8)
BTSL-60-144
144
6000
3000
2000
48x72
60x96
48x72
22.25
166.25
45
4.8
Yes
A
Call for Quote
9)
BTSL-30-162
162
3000
1500
1000
60x88
84x108
60x84
42
204
60
4.8
Yes
A
Call for Quote
10)
BTSL-60-162
162
6000
3000
2000
60x88
84x108
60x84
42
204
80
4.8
Yes
A
Call for Quote
11)
BTSL-30-180
180
3000
1500
1000
60x96
84x120
60x93
42
222
75
4.8
Yes
A
Call for Quote
12)
BTSL-60-180
180
6000
3000
2000
60x96
84x120
60x93
42
222
85
4.8
Yes
A
Call for Quote
Notes:
A:
*Standard platforms. Oversized platforms, beveled toeguards, roller shades, accordion skirting and electrical tape switches will affect overall size. Power requirements depend upon frequency and type of operation and require specific selection. 1 1/2HP Power Units are internal as standard equipment. 3HP and 4.8Hp Power Units are remote as standard equipment. Standard power supply for 1 1/2HP Power Unit is 230V/1PH/60Hz. Optional power supply for
PROP 65 WARNING
For California Residents:
www.P65Warnings.ca.gov
Products on this page may lead to cancer or reproductive harm.
OPTIONS:
1)
BTSL Option: Aluminum Treadplate, Bridge with Hinge Assy
(2 items)
2)
BTSL Option: Steel Treadplate, Bridge with Hinge Assy
(2 items)
3)
BTSL Option: Steel Treadplate Approach Ramp
(1 items)
4)
BTSL Option: Electrical
(18 items)
5)
BTSL Option: Handrails / Toeboards
(4 items)
6)
BTSL Option: Hydraulic - Power Unit Assembly
(18 items)
7)
BTSL Option: Platform
(10 items)
8)
BTSL Option: Safety Skirting
(2 items)
