Economy Scissor Lift

Economy Scissor Lift - Ergonomic Lift Tables - BEHLT Series

Beacon® BEHLT-WS Series

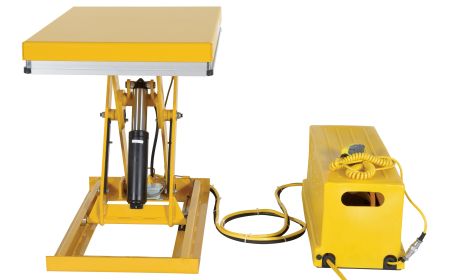

The small Economy Scissor Lift engineering technology raises materials to an ergonomically correct working height. These Ergonomic Lift Tables heighten workplace safety with minimum space requirements. This unit has a travel time of 8 seconds.
Starting at: $3,592.09

See chart below and click a model number

Product Details

  • Size: This product is available in platform sizes of 24" wide x 48" long, 32" wide x 48" long and 40" wide x 48" long.
  • Service Range: These models have a lowered height of 7" and a raised height of 36".
  • Installation: Surface or pit mount will end up with different overall heights. The three vertical geometric properties to be aware of is the (1) Lowered height (2) Travel (3) Overall height. When mounting in a pit, your travel will end up as your overall height.
  • Weight: The unit comes in weights of 720, 750 or 780 lbs.
  • Capacity: This Economy Scissor Lift series has a 1,500-lb. capacity designed for efficiency at the work place.
  • Standard: The Economy Scissor Lift comes standard with an external power unit and hand control.
  • Limited Warranty: To keep warranty valid you cannot cantilever the geometric ratio weight beyond the center of gravity. All Hydraulic Lift Tables are quoted the capacity within its deck size and must keep with a uniformly distributed load.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
  • Note: A

Documents



Economy Scissor Lift - BEHLT-WS Series
Model No. Platform Size (W x L) Capacity (LBS) Raised Height Lowered Height Travel Time Note Price
1) BEHLT-WS-2448-1.5-36 24"x48" 1,500 36" 7" 8 Sec. A $3,592.09
2) BEHLT-WS-3248-1.5-36 32"x48" 1,500 36" 7" 8 Sec. A $3,651.80
3) BEHLT-WS-4048-1.5-36 40"x48" 1,500 36" 7" 8 Sec. A $3,752.27
Notes:
A: Travel Time Based on 3 PH Power
