Hydraulic Scissor Lift

Hydraulic Scissor Lift BEHLTS series is designed for Compact Lift applications.

Beacon® BEHLTS Series

This production Hydraulic Scissor Lift technology is designed to lift items to proper ergonomic working height, reducing worker fatigue as well as the risk of repetitive-motion injuries. Utilized as a Compact Lift, ready for work in tight spaces. These models are available in a single or double leg style. This series has an emergency internal brass velocity fuse and a full perimeter pinch point guard.
Starting at: $3,984.73

See chart below and click a model number

Product Details

  • Construction: These units feature all steel construction.
  • Size: This series comes in platform widths ranging from 24" to 48" and platform lengths of 36" to 48". Specify platform size when ordering.
  • Service Range: This hydraulic scissor lift unit has lowered heights of either 7" or 8" and a raised height of 35".
  • Electrical: 460 V AC, 3 Phase, 60 Hertz is Standard. (Optional electrical changes are available including Voltage, Phase and Hertz at an additional charge).
  • Weight: This series comes in a variety of weights ranging from 668 to 792 lbs.
  • Capacity: These models feature capacities ranging from 1,000 to 5,000 lbs.

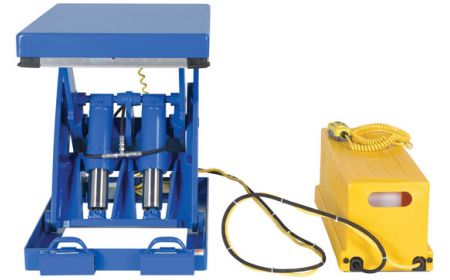

  • Standard: Each Hydraulic Scissor Lift unit comes standard with an external power unit and hand control. Smooth steel plate deck surface.
  • Warranty: To keep the warranty valid you cannot cantilever the geometric ratio weight beyond the center of gravity. All units are quoted the capacity within its deck size and must keep with a uniformly distributed load.

Hydraulic Scissor Lift Questions and Answers


Hydraulic Scissor Lift - BEHLTS Series
Model No. Vertical Travel Platform Width Platform Length Capacity (LBS) Raised Height Lowered Height Travel Time (Sec.) Price
1) BEHLTS-1-31 24" 24"-48" 36"-48" 1,000 31" 7" 5 $4,686.87
2) BEHLTS-2-31 24" 24"-48" 36"-48" 2,000 31" 7" 5 $5,375.74
3) BEHLTS-3-31 24" 24"-48" 36"-48" 3,000 31" 7" 5 $6,640.99
4) BEHLTS-4-31 24" 24"-48" 36"-48" 4,000 31" 7" 10 $7,176.19

5) BEHLTS-5-31 23" 30"-48" 36"-48" 5,000 31" 8" 10 $7,426.12
Hydraulic Scissor Lift - BEHLTSD Series
Model No. Vertical Travel Platform Width Platform Length Capacity (LBS) Raised Height Lowered Height Price
6) BEHLTSD-1228-05-35 28" 12" 28" 500 35" 7" $3,984.73
7) BEHLTSD-1628-1-35 28" 16" 28" 1,000 35" 7" $4,227.47
8) BEHLTSD-2436-1-35 28" 24" 36" 1,000 35" 7" $4,510.18
