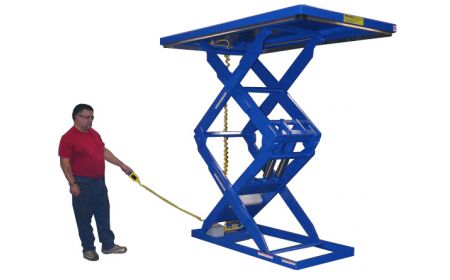

Double Scissor Lift

Beacon® BEHLTD Series

Product Details

• Construction: Constructed of heavy-duty steel.
• Size: The platform width ranges from 34" to 48". The platform length ranges from 48" to 88". Specify specific platform sizes when ordering.
• Service Range: The raised height of the Double Scissor Lift is 70" or 84". The lowered heights are 10" or 12". The unit's vertical travel is 60" or 72".
• Electrical: 460 V AC, 3 Phase, 60 Hertz is Standard. (Optional electrical changes are available including Voltage, Phase and Hertz at an additional charge).
• Powered: Optional Air (Rotary Air/Oil or Reciprocating Air/Oil) is available at an additional charge.
• Installation: Surface or pit mount will end up with different overall heights. The three vertical geometric properties to be aware of is the (1) Lowered height (2) Travel (3) Overall height. When mounting in a pit, your travel will end up as your overall height.
• Weight: Models weigh from 1,470 to 2,021 lbs.
• Capacity: The capacities range from 1,000 to 5,000 lbs. Published capacities are rated as evenly distributed when the load is applied in the lowered position and then raised. Any applied load in the raised position, centered, end or side derates the published capacity, contact Beacon for specifications.
• Standard: The Double Scissor Lift includes the following standard features: electric toe guards for the pinch point areas, brass velocity fuse, 24 V AC push-button hand control, maintenance prop, and upper travel limit stop switch. Smooth steel plate deck surface.
• Options: Steel treadplate deck surface.
• Limited Warranty: To keep warranty valid you cannot cantilever the geometric ratio weight beyond the center of gravity. All units are quoted the capacity within its deck size and must keep with a uniformly distributed load.
• Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
• Usage: This item is made to order; therefore, delivery times are not guaranteed. Production schedules may fluctuate due to supply chain dynamics or unforeseen circumstances. Fulfillment times may vary and lead times are quoted as approximate only. A signed approval drawing is required prior to production. Freight, site preparation, installation and training are not included. The customer is responsible for ensuring the correctness of fit.
• Note: Travel times are based on 460 V 3-phase power ranges between 7 and 23 seconds, depending on the size of unit. It is the customers responsibility to meet all federal, state and local codes regarding height restrictions and safety requirements.
