Portable Offset Jib

Portable Offset Jib - Offset Workstation Jib - BJIB-CBX series

Bear Claw® BJIB-CBX Series

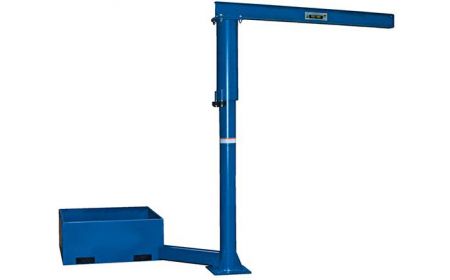

The Portable Offset Jib - Offset Workstation Jib feature an offset base to allow for a larger work area beneath the I beam. This unit is transportable using the built-in fork pockets measuring 7-1/2" wide x 2-1/2" high usable on a 24" center. This unit is not for use as a fork truck attachment.
Starting at: $3,936.25

See chart below and click a model number

Product Details

  • Construction: Portable Offset Jib features steel construction.
  • Size: Bases are 59-11/16" wide x 59-11/16" long x either 18" or 36" high. I beam lengths are 8' or 10' and heights are 6" or 10-1/8". Usable I beam lengths range from 86" to 108". The flange width is 4". Units have 10' under the I beam.
  • Color: Models are painted Beacon blue.
  • Weight: Units weigh from 296 to 6,636 lbs.
  • Operation: Do not move the portable offset jib while loaded or use it as a fork truck attachment.
  • Capacity: Units have capacities of 250, 500, or 1,000 lbs.
  • Options: For immediate use, Portable Offset Jib units with bases pre-filled with concrete are available. Users may fill their own bases. An 18" high base requires (41) 60-lb. bags of concrete mix and a 36" high base uses (82) 60-lb. bags of concrete mix.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
  • Note: Unit ships knock down.

Documents
Bear Claw® Portable Offset Jib - BJIB-CBX Series
Model No. Capacity (LBS.) Overall I-Beam Length Usable I-Beam Length I-Beam Height I-Beam Flange Width Base (W x L x H) Overall Size (W x L x H) Price
1) BJIB-CBX-25-8-10 250 96" 85¾" 6" 4" 42-3/16"x42-3/16"x18" 59⅜"x181⅝"x126⅛" $3,936.25
2) BJIB-CBX-25-8-10-BC 250 96" 85¾" 6" 4" 42-3/16"x42-3/16"x18" 59⅜"x181⅝"x126⅛ $4,327.84
3) BJIB-CBX-25-10-10 250 120" 109¾" 6" 4" 42-3/16"x42-3/16"x18" 59⅜"x205⅝"x126⅛" $5,978.30
4) BJIB-CBX-25-10-10-BC 250 120" 109¾" 6" 4" 42-3/16"x42-3/16"x18" 59⅜"x205⅝"x126⅛" $6,391.68

5) BJIB-CBX-50-8-10 500 96" 85¾" 6" 4" 42-3/16"x42-3/16"x18" 59⅜"x181⅝"x126⅛" $5,909.66
6) BJIB-CBX-50-8-10-BC 500 96" 85¾" 6" 4" 42-3/16"x42-3/16"x18" 59⅜"x181⅝"x126⅛" $6,271.76
7) BJIB-CBX-50-10-10 500 120" 109¾" 10⅛" 4" 42-3/16"x42-3/16"x36" 59⅜"x205⅝"x130¾" $7,762.00
8) BJIB-CBX-50-10-10-BC 500 120" 109¾" 10⅛" 4" 42-3/16"x42-3/16"x36" 59⅜"x205⅝"x130¾" $8,459.43

9) BJIB-CBX-100-8-10 1,000 96" 85¾" 10⅛" 4" 42-3/16"x42-3/16"x36" 59- ⅜"x181⅝"x130⅛" $7,543.97
10) BJIB-CBX-100-8-10-BC 1,000 96" 85¾" 10⅛" 4" 42-3/16"x42-3/16"x36" 59- ⅜"x181⅝"x130⅛" $8,223.83
OPTION
Model No. Description Price
11) BJIB-CBX-18-B Option to pre-fill base with concrete - for 18" high bases $1,101.00
12) BJIB-CBX-18-BC Option to pre-fill base with concrete - for 18" high bases $1,535.92
13) BJIB-CBX-36-B Option to pre-fill base with concrete - for 36" high bases $1,414.69
14) BJIB-CBX-36-BC Option to pre-fill base with concrete - for 36" high bases $1,972.09
