Hoist Trolley - BQIT series

Bear Claw® BQIT Series

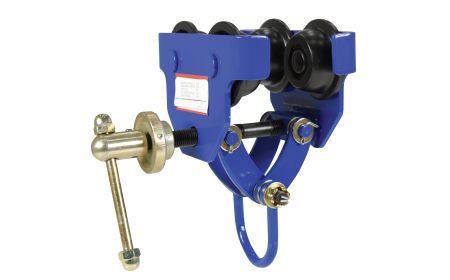

Each multipurpose Hoist Trolley is adjustable and will fit virtually any S, H, M, W or I type beam. The manual screw mechanism can be tightened to prevent unwanted movement of the trolley. A lifting eye is located at the bottom of the unit for attaching a hoist (not included).
Starting at: $173.22

See chart below and click a model number

Product Details

  • Construction: Hoist Trolley features all steel construction.
  • Size: This series fits beam flange widths from 2" to 11-3/4" and have a headroom up to 13-7/8".
  • Color: All models feature a Beacon Blue painted finish.
  • Weight: The Hoist Trolley weighs from 13 to 70 lbs.
  • Operation: The unit is adjusted with a manual screw mechanism.
  • Capacity: Models feature capacities of up to 12,000 lbs.
  • Standard: Hoist Trolley price includes four rollers with sealed bearings and a locking ring to prevent the width from changing accidentally.
  • Note: Hoists are not included.

Documents



Bear Claw® Hoist Trolley - BQIT Series
Model No. Fit Flange Width Headroom Capacity(LBS) Price
1) BQIT-03 2" to 4½" 6¾" 300 $173.22
2) BQIT-06 2" to 4½" 6¾" 600 $181.23
3) BQIT-1 2" to 4½" 6¾" 1,000 $184.05
4) BQIT-2 3" to 5" 8⅛" 2,000 $261.24
5) BQIT-4 3" to 7½" 10" 4,000 $343.94
6) BQIT-6 3" to 7½" 10⅜" 6,000 $366.13
7) BQIT-8 4" to 11¾" 13⅞" 8,000 $584.86
8) BQIT-10 4" to 11¾" 13⅞" 10,000 $688.42
9) BQIT-12 4" to 11¾" 13⅞" 12,000 $731.51
