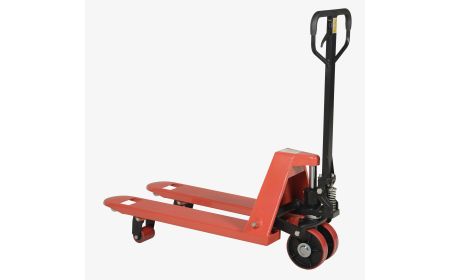

Standard Pallet Jack

Standard Pallet Jack - BPM5 series by Beacon Industries

Beacon® BPM5- Series

Standard Pallet Jack is an economical way to move bulky, heavy pallets without the assistance of a fork truck. Standard unit is supplied with a spring loaded loop handle that automatically returns to vertical position when not in use. Ergonomic design has been proven to provide years of steadfast service through extensive time-testing. The series has a low-maintenance, economical build.
Starting at: $759.10

See chart below and click a model number

Product Details

  • Construction: Features solid steel forks and a chrome-plated hydraulic pump piston.
  • Service Range: The units feature a service range from 2-7/8" to 7-3/4".
  • Overall Fork Width: Forks are 20" wide x 48" long x 7" wide.
  • Color: The unit can come in a variety of colors.
  • Weight: Individual units weigh 184 to 423 lbs. The 6 package units weigh 985 to 1,220 lbs.
  • Operation: This series is user friendly and is operated manually by one person. Units require only 75-lbs. of pulling force when fully loaded in order to operate.
  • Capacity: The unit's capacity is 5,500 lbs.
  • Standard: The front of each Standard Pallet Jack fork features nose wheels to assist efficient pallet exit and entrance. The steering wheels are 6-3/4" or 7-3/4" x 2". Load rollers are 2-7/8" or 3" x 3-5/8".
  • Note: This unit is shipped in a crate without the handle attached. The handle is to be attached by others.
  • BPM5-2748360° View

Documents
Standard Pallet Jack - BPM5- Series
Model No. Capacity (lbs.) Overall Fork Dimensions (W x L x H) Service Range Note Price
1) BPM5-2036 5,500 20"x49-11/16"x48-9/16" 2⅞" to 7¾" A $813.35
2) BPM5-2048 5,500 22"x61-11/16"x49" 2⅞" to 7¾" A $822.11
3) BPM5-2048-QL 5,500 20"x59"x48" 2⅞" to 7¾" A $807.45
4) BPM5-2736 5,500 27"x49½"x48½" 2⅞" to 7¾" A $850.37
5) BPM5-2748 5,500 27"x61-11/16"x48⅝" 2⅞" to 7¾" A $759.10
6) BPM5-2748-DMHB 5,500 27"x66"x49" 2⅞" to 7¾" A $1,179.89
7) BPM5-2748-FP 5,500 27"x66"x49" 2⅞" to 7¾" A $1,145.41
8) BPM5-2748-HB 5,500 27"x66"x49" 2⅞" to 7¾" A $967.43
9) BPM5-2748-N 5,500 27"x61"x48" 2⅞" to 7¾" A $838.88
10) BPM5-2748-PINK 5,500 27"x63"x48" 2⅞" to 7¾" A $978.86
11) BPM5-2748-QL 5,500 27"x61-11/16"x48⅝" 2⅞" to 7¾" A $770.35
12) BPM5-2748-S 5,500 27"x61"x48" 2⅞" to 7¾" A $1,035.40
13) BPM5-2748-Y 5,500 28¾"x61-11/16"x48⅝" 2⅞" to 7¾" A $856.14
Notes:
A: Shipped crated with handle detached.
Standard Pallet Jack - Six (6) units - BPM5-6PKG Series
Model No. Description Capacity (lbs.) Overall Fork Dimensions (W x L x H) Service Range Note Price
14) BPM5-2048-6PKG Six (6) BPM5-2048 units - Special Package Pricing 5,500 22"x61-11/16"x49" 2⅞" to 7¾" A $4,855.82
15) BPM5-2748-6PKG Six (6) BPM5-2748 units - Special Package Pricing 5,500 27"x61-11/16"x48⅝" 2⅞" to 7¾" A $4,472.08
16) BPM5-2748-S-G-6PKG Six (6) BPM5-2748 units - Special Package Pricing 5,500 27"x62"x48" 2⅞" to 7¾" A $8,441.43
17) BPM5-2748-Y-6PKG Six (6) BPM5-2748 units - Special Package Pricing 5,500 27"x61-11/16"x48⅝" 2⅞" to 7¾" A $4,946.02
Notes:
A: Shipped crated with handle detached.
OPTIONS
Model No. Description Note Price
18) BPM5-FB Foot Brake Option   $81.36
Notes:
A: Shipped crated with handle detached.

WarningPROP 65 WARNING

For California Residents: www.P65Warnings.ca.gov
Products on this page may lead to cancer or reproductive harm.


Complementary Products: For equipment that will increase the service range of this pallet truck, please see Beacon skid adaptors for pallet trucks.
