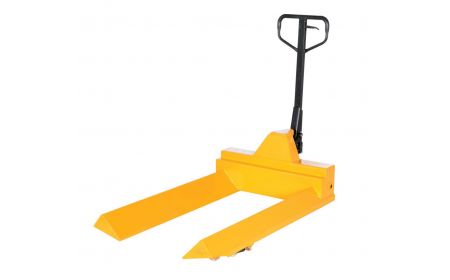

Roll Pallet Jack

Roll Pallet Jack - BPM4 series

Beacon® BPM4 series

The Roll Pallet Jack is designed to decrease workers fatigue when transporting large rolls of material. The V-shaped forks hold the rolls in place while steering the unit. These units can accommodate a variety of roll sizes for many different applications.
Starting at: $900.73

See chart below and click a model number

Product Details

  • Size: The overall fork size for this Pallet Jack Roll Adaptors ranges from 33” x 48”, 40” x 48”, and 45” x 48”. Steering Wheels measure 7” x 2”, while the load rollers measure 3-1/2” x 3”.
  • Service Range: 0” to 7-3/4”.
  • Weight: Units are manufactured with weights of 328, 360, and 379 lbs. depending on the model.
  • Usage: Designed to transport rolls of material throughout material handling facilities.
  • Operation: The sloped ends allow for manually rolling material into position.
  • Capacity: Models are engineered with a 4,000 lb. capacity for heavy lifting and transporting.
  • Standard: V-shaped center comes standard to hold rolls into position.
  • Surcharge: Tariffs or surcharges may apply to current published pricing.

Documents



Roll Pallet Jack - BPM4 series
Model No. Fork Size (W x L) Accommodates Roll Size (Diameter) Service Range Capacity (lbs.) Price
1) BPM4-3348-RL 33"x48" 23⅝" to 31-½" 0 to 7-¾" 4,000 $900.73
2) BPM4-4048-RL 40"x48" 31-½" to 47-¼" 0 to 7-¾" 4,000 $914.12
3) BPM4-4548-RL 45"x48" 47-¼" to 63" 0 to 7-¾" 4,000 $1,138.96
