Scissor Lift Table
Scissor Lift Table
Beacon
®
BHLTTL Series

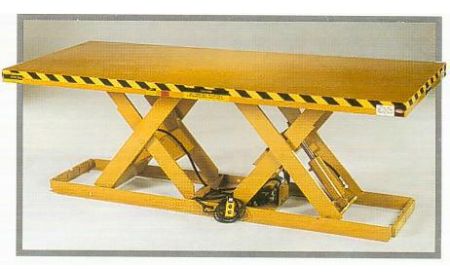

The technology Scissor Lift Table is designed with a tandem leg set to lift work loads of significant length and position them at an ergonomically proper height for the employee. These heavy-duty Hydraulic Lift Platform units feature double-long scissor legs for workers needing longer platforms. They feature smooth steel tops. This series is supplied with standard straight toe guards for surface mounting. If pit mounting is required, please specify when ordering, and beveled toe guards will be supplied at no charge. Call Beacon for optional electric toe guard pricing.
Starting at:
$
75,713.67
See chart below and click a model number
Product Details
Construction:
Features steel construction.
Projection:
For optional beveled toe guards add 8" to the width and length. For optional straight toe guards with electric toe guard tape switch add 4" to the width and length. Specify the option during quoting for special pricing.
Size:
Models feature standard platform sizes ranging from 24" x 96" to 24" x 168" and maximum platform sizes ranging from 48" x 144" to 48" x 216". The base frames measure 24" x 96", 24" x 128" and 24" x 168".
Installation:
Surface or pit mount will end up with different overall heights. The three vertical geometric properties to be aware of is the (1) Lowered height (2) Travel (3) Overall height. When mounting in a pit, your travel will end up as your overall height.
Weight:
Models are available in a variety of weights ranging from 960 to 2,500 lbs.
Capacities:
The scissor lift table models are available in a variety of capacities ranging from 2,000 to 12,000 lbs. Published capacities are rated as evenly distributed when the load is applied in the lowered position and then raised. Any applied load in the raised position, centered, end or side derates the published capacity, contact Beacon for specifications.
Standard:
Smooth steel plate deck surface.
Options:
Steel treadplate deck surface.
Limited Warranty:
To keep the Scissor Lift Table warranty valid you cannot cantilever the geometric ratio weight beyond the center of gravity. All units are quoted the capacity within its deck size and must keep with a uniformly distributed load.
Surcharge:
Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
Usage:
This item is made to order; therefore, delivery times are not guaranteed. Production schedules may fluctuate due to supply chain dynamics or unforeseen circumstances. Fulfillment times may vary and lead times are quoted as approximate only. A signed approval drawing is required prior to production. Freight, site preparation, installation and training are not included. The customer is responsible for ensuring the correctness of fit.
Note:
Payment Terms: This product is special and requires a 20% deposit at time of order, 20% prior to shipment and balance net 30 with approved credit.
Documents
BHLTTL-Tech-Sheet
BHLTTL-Scissor-Lift-Survey-Sheet
Electrical-Voltage-International
NEMA-Enclosure-Types
Load-Transfer-Arrangements
Prop. 65 WARNING
Options
Scissor Lift Table - BHLTTL Series
Model No.
Travel (inches)
Cap Lbs
Edge Load Static
Edge Load Rolling
Platform Std.
Platform Max.
Base
Lowered Height (inches)
Raised Height (inches)
Approx Up Speed
Motor HP
Scissor Lift Survey Sheet Required for Quote
Note
Price
1)
BHLTTL-020-36
36
2000
2000
1340
24x96
48x144
24x96
7
43
20
1.5
Yes
A
$75,713.67
2)
BHLTTL-040-36
36
4000
3000
2010
24x96
48x144
24x96
7
43
20
1.5
Yes
B
Call for Quote
3)
BHLTTL-060-36
36
6000
3500
2345
24x96
48x144
24x96
7
43
26
1.5
Yes
B
Call for Quote
4)
BHLTTL-080-36
36
8000
3500
2345
24x96
48x144
24x96
7
43
40
1.5
Yes
B
Call for Quote
5)
BHLTTL-100-36
36
10000
3500
2345
24x96
48x144
24x96
7
43
50
1.5
Yes
B
Call for Quote
6)
BHLTTL-120-36
36
12000
3500
2345
24x96
48x144
24x96
7
43
52
1.5
Yes
B
Call for Quote
7)
BHLTTL-020-48
48
2000
2000
1340
24x128
48x168
24x128
7
55
20
1.5
Yes
B
Call for Quote
8)
BHLTTL-040-48
48
4000
3000
2010
24x128
48x168
24x128
7
55
20
1.5
Yes
B
Call for Quote
9)
BHLTTL-060-48
48
6000
3500
2345
24x128
48x168
24x128
7
55
26
1.5
Yes
B
Call for Quote
10)
BHLTTL-080-48
48
8000
3500
2345
24x128
48x168
24x128
7
55
40
1.5
Yes
B
Call for Quote
11)
BHLTTL-100-48
48
10000
3500
2345
24x128
48x168
24x128
8
56
50
1.5
Yes
B
Call for Quote
12)
BHLTTL-120-48
48
12000
3500
2345
24x128
48x168
24x128
8
56
52
1.5
Yes
B
Call for Quote
Notes:
A:
*Standard platforms only. **See options. Oversized platforms, beveled toeguards, roller shades, accordion skirting and electrical tape switches will affect overall size. Power requirements depend upon frequency and type of operation and require specific selection. Standard power supply required: 230V/1PH/60Hz. If available power supply is 115V/1PH/60Hz, a 3/4 HP motor is required. This will double the up speed. Alternate internal 3 phase power unit 208V/230V/460V available. Optional Hi-Speed 3HP 208V/230V/460V/3PH/60Hz power unit available. Speeds for Hi-Speed units will be 2/3greater than speeds specified (multiply by 0.67).
B:
*Standard platforms only. **See options. Oversized platforms, beveled toeguards, roller shades, accordion skirting and electrical tape switches will affect overall size. Power requirements depend upon frequency and type of operation and require specific selection. Standard power supply required: 230V/1PH/60Hz. If available power supply is 115V/1PH/60Hz, a 3/4 HP motor is required. This will double the up speed. Alternate internal 3 phase power unit 208V/230V/460V available. Optional Hi-Speed 3HP 208V/230V/460V/3PH/60Hz power unit available. Speeds for Hi-Speed units will be 2/3 greater than speeds specified (multiply by 0.67).
PROP 65 WARNING
For California Residents:
www.P65Warnings.ca.gov
Products on this page may lead to cancer or reproductive harm.
OPTIONS:
1)
BHLTTL Option: Aluminum Treadplate, Bridge with Hinge Assy
(2 items)
2)
BHLTTL Option: Steel Treadplate, Bridge with Hinge Assy
(2 items)
3)
BHLTTL Option: Steel Treadplate Approach Ramp
(1 items)
4)
BHLTTL Option: Electrical
(18 items)
5)
BHLTTL Option: Handrails / Toeboards
(4 items)
6)
BHLTTL Option: Hydraulic - Power Unit Assembly
(18 items)
7)
BHLTTL Option: Platform
(10 items)
8)
BHLTTL Option: Safety Skirting
(2 items)
