Scissor Lift Mechanism
Scissor Lift Mechanism
Beacon
®
BCLTPB Series

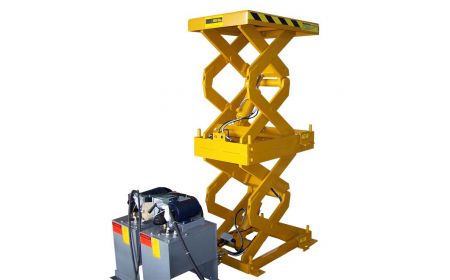

The stacked Dual Scissor Lift engineering technology, with a double acting scissor and power unit, have capacities from 1,000 to 5,000 lb. The raised height of the Double Scissor Lift Platform is 89" and are available in multiple electrical options. Accordion skirting available as an option.
Starting at:
$
16,191.61
See chart below and click a model number
Product Details
Construction:
Models feature steel construction.
Projection:
For optional beveled toe guards add 8" to the width and length. For optional straight toe guards with electric toe guard tape switch add 4" to the width and length. Specify the option during quoting for special pricing.
Service Range:
The Dual Scissor Lifts lowered height is 17" and the overall raised height is 89"
Electrical:
230 / 480 V AC, 3 Phase, 60 Hz is standard. Other electrical options are available.
Installation:
Surface or pit mount will end up with different overall heights. The three vertical geometric properties to be aware of is the (1) Lowered height (2) Travel (3) Overall height. When mounting in a pit, your travel will end up as your overall height.
Operation:
Double acting leg set platform is controlled by the double power unit. Start - stop then start - stop for double the control and settings.
Standard:
Smooth steel plate deck surface.
Options:
Accordion skirting is an option for Dual Scissor Lifts to keep out debris and foreign objects from getting under the leg set. Steel treadplate deck surface.
Limited Warranty:
To keep warranty valid you cannot cantilever the geometric ratio weight beyond the center of gravity. All units are quoted the capacity within its deck size and must keep with a uniformly distributed load.
Surcharge:
Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
Usage:
This item is made to order; therefore, delivery times are not guaranteed. Production schedules may fluctuate due to supply chain dynamics or unforeseen circumstances. Fulfillment times may vary and lead times are quoted as approximate only. A signed approval drawing is required prior to production. Freight, site preparation, installation and training are not included. The customer is responsible for ensuring the correctness of fit.
Note:
Payment Terms: This product is special and requires a 20% deposit at time of order, 20% prior to shipment and balance net 30 with approved credit.
Documents
BCLTPB-Scissor-Lift-Survey-Sheet
Electrical-Voltage-International
NEMA-Enclosure-Types
Load-Transfer-Arrangements
Prop. 65 WARNING
Options
Scissor Lift Mechanism - BCLTPB Series
Model No.
Travel
Cap Lbs
Platform Std.
Platform Max.
Base
Lowered Height (inches)
Raised Height (inches)
Approx Up Speed
Motor HP
Cyl
Scissor Lift Survey Sheet Required for Quote
Price
1)
BCLTPB-02-36-S
72"
1,000
24"x36"
38"x40"
22½" 35"
17"
Yes
$16,191.61
ACCESSORY
Model No.
Description
Color
Price
2)
BCLTPB-SKIRT
Accordion Bellow Skirt
Black and Yellow
Call for Quote
PROP 65 WARNING
For California Residents:
www.P65Warnings.ca.gov
Products on this page may lead to cancer or reproductive harm.
