Heavy Duty Scissor Lift

Heavy Duty Scissor Lift - Custom Lifts - BMLTQD Series

Beacon® BMLTQD Series

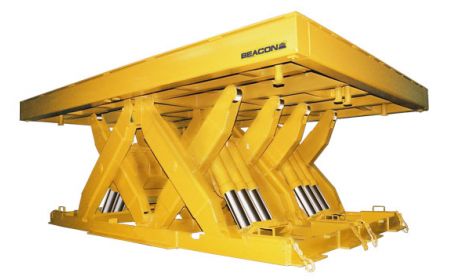

This massive Heavy Duty Scissor Lift technology is an electro-hydraulic unit designed for extreme lifting. The surfaces are degreased, oxide-primed, and finished with 2 enamel coats. This high capacity product is supplied with standard straight toe guards for surface mounting. If pit mounting is required, please specify when ordering, and beveled toe guards will be supplied at no charge. Call Beacon for optional electric toe guard pricing.
Starting at: $391,242.75

See chart below and click a model number

Product Details

  • Construction: This unit features steel construction.
  • Projection: For optional beveled toe guards add 8" to the width and length. For optional straight toe guards with electric toe guard tape switch add 4" to the width and length. Specify the option during quoting for special pricing.
  • Size: Available in a variety of standard platform sizes ranging from 96" x 120" to 96" x 216" and in maximum platform sizes ranging from 120" x 168" to 120" x 264".
  • Service Range: Models come in lowered heights of 16" or 20" and in a variety of raised heights ranging from 46" to 92".
  • Electrical: 230 / 480 V AC, 3 Phase, 60 Hz is standard. Other electrical options are available.
  • Powered: Optional Air (Rotary Air/Oil or Reciprocating Air/Oil) is available at an additional charge.
  • Power: The Heavy Duty Scissor Lift is standard with hydraulic singular or optional quad valving. Optional counter balance quad valving quoted as special.
  • Installation: Surface or pit mount will end up with different overall heights. The three vertical geometric properties to be aware of is the (1) Lowered height (2) Travel (3) Overall height. When mounting in a pit, your travel will end up as your overall height.
  • Weight: Units come in a variety of weights ranging from 12,000 to 20,800 lbs.
  • Scope: It is the customer's responsibility to meet all federal, state and local codes regarding height restrictions and safety requirements.
  • Capacity: Available in a variety of capacities ranging from 50,000 to 120,000 lbs. Published capacities are rated as evenly distributed when the load is applied in the lowered position and then raised. Any applied load in the raised position, centered, end or side derates the published capacity, contact Beacon for specifications.
  • Standard: Smooth steel plate deck surface.
  • Options: Steel treadplate deck surface.
  • Limited Warranty: To keep the Heavy Duty Scissor Lift warranty valid you cannot cantilever the geometric ratio weight beyond the center of gravity. All units are quoted the capacity within its deck size and must keep with a uniformly distributed load.
  • Usage: This item is made to order; therefore, delivery times are not guaranteed. Production schedules may fluctuate due to supply chain dynamics or unforeseen circumstances. Fulfillment times may vary and lead times are quoted as approximate only. A signed approval drawing is required prior to production. Freight, site preparation, installation and training are not included. The customer is responsible for ensuring the correctness of fit.

Documents
Heavy Duty Scissor Lift - BMLTQD Series
Model No. Travel Cap Lbs Axle Load Max, Concentrated Platform Std. Platform Max. Base Lowered Height (inches) Raised Height (inches) Approx Up Speed Motor HP Scissor Lift Survey Sheet Required for Quote Note Price
1) BMLTQD-50-30 30” 50000 40000 96x120 120x168 96x120 16 46 40 10 Yes A $391,242.75
2) BMLTQD-60-30 30” 60000 48000 96x 120 120x168 96x120 16 46 40 10 Yes A Call for Quote
3) BMLTQD-70-30 30” 70000 56000 96x120 120x168 96x120 16 46 70 10 Yes A Call for Quote
4) BMLTQD-80-30 30” 80000 64000 96x120 120x168 96x120 20 50 70 10 Yes A Call for Quote
5) BMLTQD-100-30 30” 100000 80000 96x120 120x168 96x120 20 50 100 10 Yes A Call for Quote
6) BMLTQD-120-30 30” 120000 96000 96x120 120x168 96x120 20 50 100 10 Yes A Call for Quote

7) BMLTQD-50-36 36” 50000 40000 96x120 120x168 96x120 16 52 45 10 Yes A Call for Quote
8) BMLTQD-60-36 36” 60000 48000 96x120 120x168 96x120 16 52 45 10 Yes A Call for Quote
9) BMLTQD-70-36 36” 70000 56000 96x120 120x168 96x120 16 52 80 10 Yes A Call for Quote
10) BMLTQD-80-36 36” 80000 64000 96x120 120x168 96x120 20 56 80 10 Yes A Call for Quote
11) BMLTQD-100-36 36” 100000 80000 96x120 120x168 96x120 20 56 110 10 Yes A Call for Quote
12) BMLTQD-120-36 36” 120000 96000 96x120 120x168 96x120 20 56 110 10 Yes A Call for Quote

13) BMLTQD-50-42 42” 50000 40000 96x144 120x192 96x144 16 58 40 10 Yes A Call for Quote
14) BMLTQD-60-42 42” 60000 48000 96x144 120x192 96x144 16 58 40 10 Yes A Call for Quote
15) BMLTQD-70-42 42” 70000 56000 96x144 120x192 96x144 16 58 70 10 Yes A Call for Quote
16) BMLTQD-80-42 42” 80000 64000 96x144 120x192 96x144 20 62 70 10 Yes A Call for Quote
17) BMLTQD-100-42 42” 100000 80000 96x144 120x192 96x144 20 62 100 10 Yes A Call for Quote
18) BMLTQD-120-42 42” 120000 96000 96x144 120x192 96x144 20 62 100 10 Yes A Call for Quote

Heavy Duty Scissor Lift - BMLTQD Series (continued)
Model No. Travel Cap Lbs Axle Load Max, Concentrated Platform Std. Platform Max. Base Lowered Height (inches) Raised Height (inches) Approx Up Speed Motor HP Scissor Lift Survey Sheet Required for Quote Note Price
19) BMLTQD-50-48 48” 50000 40000 96x144 120x192 96x144 16 64 45 10 Yes A Call for Quote
20) BMLTQD-60-48 48” 60000 48000 96x144 120x192 96x144 16 64 45 10 Yes A Call for Quote
21) BMLTQD-70-48 48” 70000 56000 96x144 120x192 96x144 16 64 80 10 Yes A Call for Quote
22) BMLTQD-80-48 48” 80000 64000 96x144 120x192 96x144 20 68 80 10 Yes A Call for Quote
23) BMLTQD-100-48 48” 100000 80000 96x144 120x192 96x144 20 68 110 10 Yes A Call for Quote
24) BMLTQD-120-48 48” 120000 96000 96x144 120x192 96x144 20 68 110 10 Yes A Call for Quote

25) BMLTQD-50-54 54” 50000 40000 96x168 120x216 96x168 16 70 60 10 Yes A Call for Quote
26) BMLTQD-60-54 54” 60000 48000 96x168 120x216 96x168 16 70 60 10 Yes A Call for Quote
27) BMLTQD-70-54 54” 70000 56000 96x168 120x216 96x168 16 70 110 10 Yes A Call for Quote
28) BMLTQD-80-54 54” 80000 64000 96x168 120x216 96x168 20 74 110 10 Yes A Call for Quote
29) BMLTQD-100-54 54” 100000 80000 96x168 120x216 96x168 20 74 110 15 Yes A Call for Quote
30) BMLTQD-120-54 54” 120000 96000 96x168 120x216 96x168 20 74 110 15 Yes A Call for Quote

31) BMLTQD-50-60 60” 50000 40000 96x168 120x216 96x168 16 76 65 10 Yes A Call for Quote
32) BMLTQD-60-60 60” 60000 48000 96x168 120x216 96x168 16 76 65 10 Yes A Call for Quote
33) BMLTQD-70-60 60” 70000 56000 96x168 120x216 96x168 16 76 120 10 Yes A Call for Quote
34) BMLTQD-80-60 60” 80000 64000 96x168 120x216 96x168 20 80 120 10 Yes A Call for Quote
35) BMLTQD-100-60 60” 100000 80000 96x168 120x216 96x168 20 80 120 15 Yes A Call for Quote
36) BMLTQD-120-60 60” 120000 96000 96x168 120x216 96x168 20 80 120 15 Yes A Call for Quote

Heavy Duty Scissor Lift - BMLTQD Series (continued)
Model No. Travel Cap Lbs Axle Load Max, Concentrated Platform Std. Platform Max. Base Lowered Height (inches) Raised Height (inches) Approx Up Speed Motor HP Scissor Lift Survey Sheet Required for Quote Note Price
37) BMLTQD-50-72 72” 50000 40000 96x216 120x264 96x216 16 88 65 10 Yes A Call for Quote
38) BMLTQD-60-72 72” 60000 48000 96x216 120x264 96x216 16 88 65 10 Yes A Call for Quote
39) BMLTQD-70-72 72” 70000 56000 96x216 120x264 96x216 16 88 120 10 Yes A Call for Quote
40) BMLTQD-80-72 72” 80000 64000 96x216 120x264 96x216 20 92 120 10 Yes A Call for Quote
41) BMLTQD-100-72 72” 100000 80000 96x216 120x264 96x216 20 92 120 15 Yes A Call for Quote
42) BMLTQD-120-72 72” 120000 96000 96x216 120x264 96x216 20 92 120 15 Yes A Call for Quote
Notes:
A: *Standard platforms only. **Load that can be rolled over the side or end in any raised position. (Standard platform only.) Oversized platforms, beveled toeguards, roller shades, accordion skirting and electrical tape switches will affect overall size. Power requirements depend upon frequency and type of operation and require specific selection. Note: Where available power supply is 208V/3PH booster transformers are required for 240V/3PH at motor, see options. Conforms to or exceeds ANSI standard MH29.1-1994.
