Column Shield

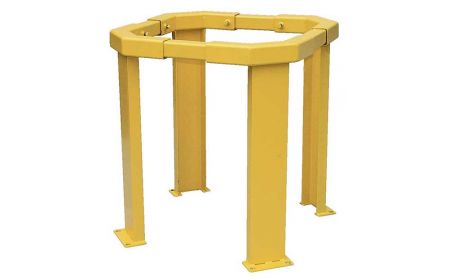

Column Shield - BMG series

Beacon® BMG Series

The Column Shield protects columns, racking, machinery, and many other items frequently found in industrial settings. These modular units are designed for quick assembly and are available in different railing lengths and heights to fit nearly any application. The sections are secured to each post with a single bolt. These models are available in either corner post units or straight post units. These models also come in either single-rail or double-rail style. All components are sold separately to best suit individual applications.
Starting at: $135.44

See chart below and click a model number

Product Details

  • Construction: Each section is constructed from heavy-duty 3" square steel tubing.
  • Size: Column Shield models are available in effective lengths ranging from 48" to 144" and in overall lengths ranging from 56" to 152". All units are 36" high.
  • Color: Units are powder coated Beacon safety yellow for extra visibility.
  • Weight: Components come in various weights ranging from 7 to 71 lbs.
  • Options: Wall mounting post tubing and concrete anchor bolts also are available for the Column Shield.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.

Documents

Options

Column Shield - BMG Series
Model No. Description Effective Length Overall Length Square Tube Diameter Price
1) BMG-R-4 Railing Section 48" 56" 2½" $135.44
2) BMG-R-6 Railing Section 72" 80" 2½" $188.48
3) BMG-R-8 Railing Section 98" 102" 2½" $247.54
4) BMG-R-10 Railing Section 120" 128" 2½" $299.10
5) BMG-R-12 Railing Section 144" 152" 2½" $361.32
Model No. Description Style Overall Height Price
6) BMG-SP-36-1 Mounting Post Single Rail 36" $236.72
7) BMG-SP-36-2 Mounting Post Double Rail 36" $320.96
Column Shield - BMG-CP Series
Model No. Description Style Overall Height Price
8) BMG-CP-36-1 Corner Post Single Rail 36" $369.09
9) BMG-CP-36-2 Corner Post Double Rail 36" $517.28
OPTION
Model No. Description Style Length Price
10) BMG-WP-A Wall Mounting Post Post Tubing 8" $48.07
11) BMG-WP-B Wall Mounting Post Railing Section Tubing 8" $63.70
Model No. Description Sleeve Diameter Overall Length Sleeve Length For Use With Price
12) BAS-344 Concrete Anchor Bolts Installation Hardware (Single) ¾" 4¼" 2" BMG series $13.44
13) BAS-344-4PK Concrete Anchor Bolts Installation Hardware (4-Pack) ¾" 4¼" 2" BMG series $26.90
