Steel Pipe Guards

Steel Pipe Guards - Pipe Impact Guards - BPWM series

Beacon® BPGW Series

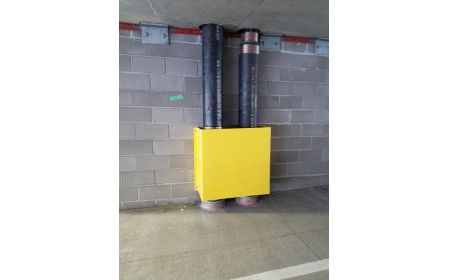

The Steel Pipe Guards - Pipe Impact Guards are an asset to the protection of your parking garage. Pipe Impact Guards are garage accessories designed to protect pipes from vehicle accidents or damage. These units are made of a heavy duty steel.

Approx Lead Time 20 - 28 Days

Starting at: $466.40

See chart below and click a model number

Product Details

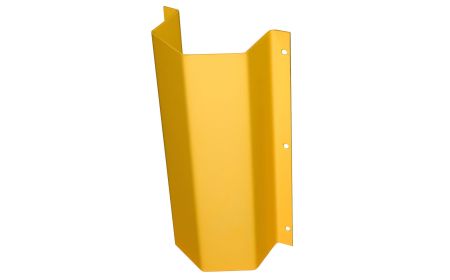

  • Construction: These models are fabricated from 3/16" solid steel plate construction.
  • Projection: Designed with 90 degree flanges for flat wall or 45 degree flanges for corner wall mount application.
  • Size: Steel Pipe Guards accommodate 2", 3", 4", 6", 8", 10", or 12" pipe as standard design. Special sizes are also available.

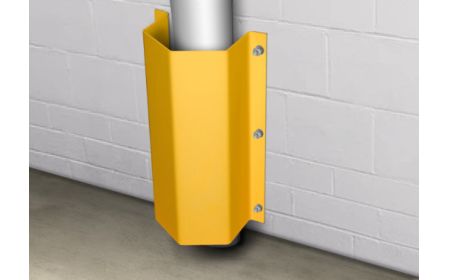

  • Installation: Available in standard flat wall mount, optional column mount and ground mount.
  • Color: These units are available in powder coated yellow paint or Hot Dip Galvanized protective coating.
  • Note: Shipping: Single unit orders size 36" long BPGWM236-Y for 2" pipe to BPGWM1036-Y up to 10" pipe with 90 degree flare can ship UPS. All other shipments are shipped LTL. Advise if shipping to construction site, finished garage, loading dock or residential.
  • Standard: Steel Pipe Guards standard flange mounts to flat walls and 45 degree flange mounts to exterior corner walls.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred.

Documents
Steel Pipe Guards - BPGW Series
Model No. Accommodate Pipe Body Width Body Depth Height Steel Thickness Finish Weight Price
1) BPGWM236-Y 2" 5" 4-3/18" 36" 3/16" Powder Coated Yellow 28 lbs. $466.40
2) BPGWM236-45-Y 2" 5" 8⅛" 36" 3/16" Powder Coated Yellow 38 lbs. $513.04
3) BPGWM336-Y 3" 7" 5-15/16" 36" 3/16" Powder Coated Yellow 36 lbs. $513.04
4) BPGWM336-45-Y 3" 7" 10-13/16" 36" 3/16" Powder Coated Yellow 50 lbs $676.28
5) BPGWM436-Y 4" 8" 7" 36" 3/16" Powder Coated Yellow 42 lbs. $559.68
6) BPGWM436-45-Y 4" 8" 12⅜" 36" 3/16" Powder Coated Yellow 58 lbs. $536.36
7) BPGWM636-Y 6" 11" 9¾" 36" 3/16" Powder Coated Yellow 56 lbs. $606.32
8) BPGWM636-45-Y 6" 11" 16-11/16" 36" 3/16" Powder Coated Yellow 77 lbs. $629.64
9) BPGWM836-Y 8" 13" 11-15/16" 36" 3/16" Powder Coated Yellow 66 lbs. $652.96
10) BPGWM836-45-Y 8" 13" 19-13/16" 36" 3/16" Powder Coated Yellow 92 lbs. $676.28
11) BPGWM1036-Y 10" 15" 14⅛" 36" 3/16" Powder Coated Yellow 77 lbs. $676.28
12) BPGWM1036-45-Y 10" 15" 23-1/16" 36" 3/16" Powder Coated Yellow 113 lbs $720.59
13) BPGWM1236-Y 12" 17" 16-5/16" 36" 3/16" Powder Coated Yellow 87 lbs. $699.60
14) BPGWM1236-45-Y 12" 17" 26-3/16" 36" 3/16" Powder Coated Yellow 120 lbs. $813.87

15) BPGWM246-Y 2" 5" 4-3/18" 46" 3/16" Powder Coated Yellow 35 lbs. $489.72
16) BPGWM246-45-Y 2" 5" 8⅛" 46" 3/16" Powder Coated Yellow 48 lbs. $524.70
17) BPGWM346-Y 3" 7" 5-15/16" 46" 3/16" Powder Coated Yellow 47 lbs. $536.36
18) BPGWM346-45-Y 3" 7" 10-13/16" 46" 3/16" Powder Coated Yellow 64 lbs. $487.39
19) BPGWM446-Y 4" 8" 7" 46" 3/16" Powder Coated Yellow 53 lbs. $583.00
20) BPGWM446-45-Y 4" 8" 12⅜" 46" 3/16" Powder Coated Yellow 73 lbs. $606.32
21) BPGWM646-Y 6" 11" 9¾" 46" 3/16" Powder Coated Yellow 71 lbs. $629.64
22) BPGWM646-45-Y 6" 11" 16-11/16" 46" 3/16" Powder Coated Yellow 99 lbs. $466.40
23) BPGWM846-Y 8" 13" 11-15/16" 46" 3/16" Powder Coated Yellow 85 lbs. $699.60
24) BPGWM846-45-Y 8" 13" 19-13/16" 46" 3/16" Powder Coated Yellow 117 lbs. $1,049.40
25) BPGWM1046-Y 10" 15" 14⅛" 46" 3/16" Powder Coated Yellow 98 lbs. $790.55
26) BPGWM1046-45-Y 10" 15" 23-1/16" 46" 3/16" Powder Coated Yellow 135 lbs $1,238.29
27) BPGWM1246-Y 12" 17" 16-5/16" 46" 3/16" Powder Coated Yellow 112 lbs. $883.83
28) BPGWM1246-45-Y 12" 17" 26-3/16" 46" 3/16" Powder Coated YellowPowder Coated Yellow 154 lbs. $1,612.26
Model No. Accommodate Pipe Body Width Body Depth Height Steel Thickness Finish Weight Minimum Order Quantity Price
29) BPGWM236-G 2" 5" 4-3/18" 36" 3/16" Hot Dip Galvanized 30 lbs. 17 $606.32
30) BPGWM236-45-G 2" 5" 8⅛" 36" 3/16" Hot Dip Galvanized 41 lbs. 13 $666.95
31) BPGWM336-G 3" 7" 5-15/16" 36" 3/16" Hot Dip Galvanized 39 lbs. 13 $662.29
32) BPGWM336-45-G 3" 7" 10-13/16" 36" 3/16" Hot Dip Galvanized 54 lbs. 10 $879.16
33) BPGWM436-G 4" 8" 7" 36" 3/16" Hot Dip Galvanized 45 lbs 12 $727.58
34) BPGWM436-45-G 4" 8" 12⅜" 36" 3/16" Hot Dip Galvanized 62 lbs. 9 $697.27
35) BPGWM636-G 6" 11" 9¾" 36" 3/16" Hot Dip Galvanized 60 lbs. 9 $469.32
36) BPGWM636-45-G 6" 11" 16-11/16" 36" 3/16" Hot Dip Galvanized 82 lbs. 7 $818.53
37) BPGWM836-G 8" 13" 11-15/16" 36" 3/16" Hot Dip Galvanized 71 lbs. 8 $848.85
38) BPGWM836-45-G 8" 13" 19-13/16" 36" 3/16" Hot Dip Galvanized 98 lbs. 6 $879.16
39) BPGWM1036-G 10" 15" 14⅛" 36" 3/16" Hot Dip Galvanized 782 lbs. 7 $644.22
40) BPGWM1036-45-G 10" 15" 23-1/16" 36" 3/16" Hot Dip Galvanized 113 lbs 5 $935.13
41) BPGWM1236-G 12" 17" 16-5/16" 36" 3/16" Hot Dip Galvanized 96 lbs. 6 $909.48
42) BPGWM1236-45-G 12" 17" 26-3/16" 36" 3/16" Hot Dip Galvanized 128 lbs. 4 $1,056.40

43) BPGWM246-G 2" 5" 4-3/18" 46" 3/16" Hot Dip Galvanized 38 lbs. 14 $636.64
44) BPGWM246-45-G 2" 5" 8⅛" 46" 3/16" Hot Dip Galvanized 52 lbs. 10 $680.94
45) BPGWM346-G 3" 7" 5-15/16" 46" 3/16" Hot Dip Galvanized 50 lbs. 10 $697.27
46) BPGWM346-45-G 3" 7" 10-13/16" 46" 3/16" Hot Dip Galvanized 69 lbs. 8 $631.97
47) BPGWM446-G 4" 8" 7" 46" 3/16" Hot Dip Galvanized 57 lbs. 9 $757.90
48) BPGWM446-45-G 4" 8" 12⅜" 46" 3/16" Hot Dip Galvanized 78 lbs. 7 $788.22
49) BPGWM646-G 6" 11" 9¾" 46" 3/16" Hot Dip Galvanized 76 lbs. 7 $818.53
50) BPGWM646-45-G 6" 11" 16-11/16" 46" 3/16" Hot Dip Galvanized 106 lbs. 5 $988.19
51) BPGWM846-G 8" 13" 11-15/16" 46" 3/16" Hot Dip Galvanized 91 lbs. 6 $909.48
52) BPGWM846-45-G 8" 13" 19-13/16" 46" 3/16" Hot Dip Galvanized 125 lbs. 4 $1,364.22
53) BPGWM1046-G 10" 15" 14⅛" 46" 3/16" Hot Dip Galvanized 105 lbs. 5 $1,026.08
54) BPGWM1046-45-G 10" 15" 23-1/16" 46" 3/16" Hot Dip Galvanized 144 lbs. 4 $1,609.08
55) BPGWM1246-G 12" 17" 16-5/16" 46" 3/16" Hot Dip Galvanized 120 lbs. 5 $1,147.34
56) BPGWM1246-45-G 12" 17" 26-3/16" 46" 3/16" Hot Dip Galvanized 164 lbs. 4 $1,772.32
