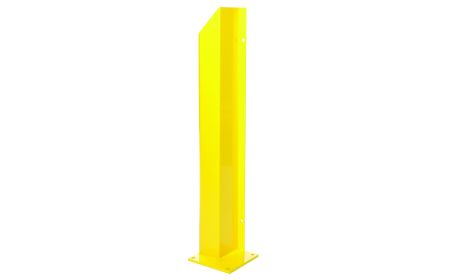

Heavy Duty Door Track Protectors
Beacon® BDG Series
Heavy Duty Door Track Protectors are designed to protect the overhead door track from fork truck, pallet and cargo damage during loading and unloading procedures.
Starting at: $150.57
See chart below and click a model number
- Models: These units have a Right and Left model number for each side of the door track location.
- Construction: Columns are 3/16" thick steel to create an over all heavy duty construction. Base plate features a L shape for wrap around support. Base plate includes 5/8" diameter anchor holes for strong anchor stability.
- Projection: Designed to project 6" from wall. Features wrap around design for front and side protection.
- Size: Heavy Duty Door Track Protectors heights are available in 36" and 48".
- Installation: These units feature a base plate for anchoring in addition to a side flange for anchoring for extra stability.
- Color: Standard powder coat color: Safety Yellow, optional colors include Blue, Orange, Grey and Black.
- Scope: Door track protecton.
- Usage: Industrial warehouses, distribution centers, manufaturing companies and trucking facilities.
- Standard: Heavy Duty Door Track Protectors are engineered with chamfered edges to help mitigate the risk of hand or body injury when lowering the overhead door.
- Materials: Base plate is provided 3/16" thick on the 36" height column unit and 1/4" thick on the 48" height column unit.
- Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred.
- Note: Made in the USA.
|Heavy Duty Door Track Protectors - BDG Series|
|Model No.||Height||Projection from Wall||Column Thickness||Baseplate Thickness||Baseplate Size (W x L)||Location Design||Color||Price|
|1) BDG-36-R||36"||6"||3/16"||⅜"||10"x10"||Right Side||Safety Yellow||$150.57|
|2) BDG-36-L||36"||6"||3/16"||⅜"||10"x10"||Left Side||Safety Yellow||$150.57|
|3) BDG-48-R||48"||6"||3/16"||¼"||10"x10"||Right Side||Safety Yellow||$206.43|
|4) BDG-48-L||48"||6"||3/16"||¼"||10"x10"||Left Side||Safety Yellow||$206.43|
