Small Lift Table

Small Lift Table - Double Scissor Lift Table - BEHLTSD Series

Beacon® BEHLTSD Series

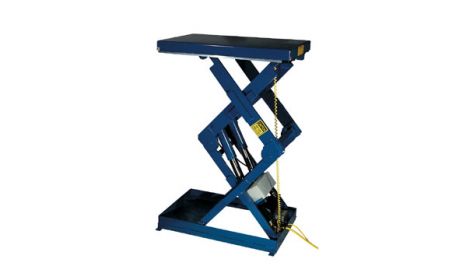

The Small Lift Table is designed to raise items to an ergonomically correct working height. This Double Leg Lift Table is ideal for work that must be done in tight spaces. This unit has smaller deck sizes customized to different workplace space requirements. Supplied an emergency internal brass velocity fuse.
Starting at: $4,823.23
Small Lift Table - BEHLTSD Series
Model No. Platform Width Platform Length Lowered Height Raised Height Vertical Travel Capacity (LBS) Travel Time (Sec.) Price
1) BEHLTSD-1228-05-35 12" 28" 7" 35" 28" 500 4 $4,823.23
2) BEHLTSD-1628-1-35 16" 28" 7" 35" 28" 1,000 4 $5,116.88
3) BEHLTSD-2436-1-35 24" 36" 7" 35" 28" 1,000 4 $5,460.05

4) BEHLTSD-1-51 34"-48" 36"-48" 10" 51" 41" 1,000 4 $9,613.08
5) BEHLTSD-2-51 34"-48" 36"-48" 10" 51" 41" 2,000 7 $10,722.32
6) BEHLTSD-3-51 34"-48" 36"-48" 10" 51" 41" 3,000 8 $11,434.49
7) BEHLTSD-4-51 34"-48" 36"-48" 10" 51" 41" 4,000 11 $12,157.51
8) BEHLTSD-5-51 34"-48" 36"-48" 10" 51" 41" 5,000 16 $12,581.52

WarningPROP 65 WARNING

For California Residents: www.P65Warnings.ca.gov
Products on this page may lead to cancer or reproductive harm.

Product Details

  • Construction: Small Lift Table has Steel construction with double stacked scissor leg set.
  • Size: This series features our smallest platform of 12" wide x 28" long, with our largest platform of 48" x 48 long. Specify paltform size when when ordering.
  • Service Range: The smaller units features a service range from 7" lowered to a 35" raised height, the larger units features a service range of 10" lowered to 51" raised height.
  • Electrical: 460 V AC, 3 Phase, 60 Hertz is Standard. (Optional electrical changes are available including Voltage, Phase and Hertz at an additional charge).
  • Capacity: Models are available in various capacities ranging from 500 to 5,000 lbs.

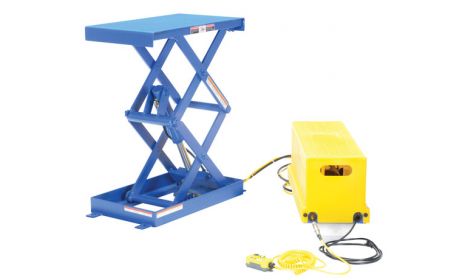

  • Standard: The Small Lift Table series comes standard with perimeter pinch point guard and an external power unit and hand control. Smooth steel plate deck surface.
  • Options: Steel treadplate deck surface. Optional Air (Rotary Air/Oil or Reciprocating Air/Oil) is available at an additional charge.
  • Limited Warranty: To keep the warranty valid you cannot cantilever the geometric ratio weight beyond the center of gravity. All units are quoted the capacity within its deck size and must keep with a uniformly distributed load.
  • Usage: The Small Lift Table is designed to raise products to an ergonomic working height, helping to improve comfort and reduce strain during material handling tasks. Its compact footprint makes it ideal for tight or limited workspace environments, while still delivering powerful lifting performance. Despite its small size, this lift table offers significant ergonomic and productivity benefits, making it a smart solution for assembly lines, workshops and packaging stations.
  • Note: Testing, adjustments, training and scheduled maintenance procedures by others.
