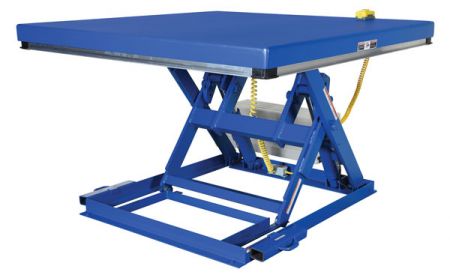

Low Scissor Lift

Beacon® BEHLTX series

Product Details

• Construction: Low Scissor Lift features heavy duty steel construction. Safety features are electric toe guards, hydraulic cylinder velocity fuses, hand held control, fused 24 Vac, maintenance supports with owners manual.
• Size: Chose from a deck platform size of 36" to 60" wide and 53" to 60" long.
• Operating Range: Lowest model height starting at 3-1/4". All units have a raised height of 39".
• Electrical: 460 Vac, 3 Ph, 60 Hz, standard power with optional 230 Vac, 3 Ph and 120 Vac, 1 Ph available upon request.
• Powered: The remote power unit (32-1/2" x 12" x 12") with 8 foot of hose and cable comes complete with a plastic cover to protect the motor from dust and debris for an inside application..
• Power: Safety features that include an electric perimeter pinch point guard, emergency stop velocity fuse in cylinders and maintenance supports. Standard velocity fuse for standard platform function height only for this unit, no zero leak valve available.
• Installation: Surface mount application.
• Operation: Standard 2 button pendant hand control supplied on a heavey duty coil cord, no E stop. No Rider Signs provide by others. Optional Hand Control Pedestal available at extra cost.
• Capacities: Uniform Capacity ranges from 1,000 lbs. to 3,500 lbs.
• Standard: Smooth steel plate deck surface. Unit is rated as evenly distributed. Standard BEHLTX lift equipment, hardware, valving and standard speed only applies. This quote is all inclusive.
• Options: Approach ramps BARX series are available as an option: Model BARX-3639-3 is 36" wide, 39" long & 3-1/4" tall. Model BARX-3654-4 is 36" wide, 54" long & 4-1/2" tall. Model BARX-3665-5.5 is 36" wide, 65" long & 5-1/2" tall. Steel treadplate deck surface.
• Usage: This Low Scissor Lift item is made to order; therefore, delivery times are not guaranteed. Production schedules may fluctuate due to supply chain dynamics or unforeseen circumstances. Fulfillment times may vary and lead times are quoted as approximate only. A signed approval drawing is required prior to production. Freight, site preparation, installation and training are not included. The customer is responsible for ensuring the correctness of fit.
• Note: Testing, adjustments, training and scheduled maintenance procedures by others.
