Spreader Beam

Spreader Beam - BSBM series

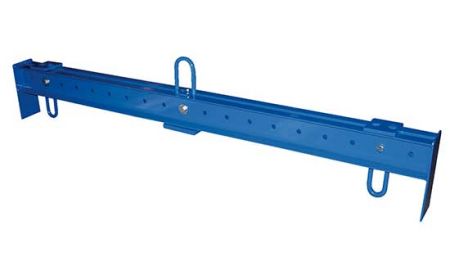

Bear Claw® BSBM Series

Spreader Beam is designed for lifting uneven loads and enabling them to stay level with increased safety. This series features ranges from 8" to 141" in increments of 4". The unit's center clevis may be adjusted in 4" increments. The clevis slides between two 5" High-C channels. These units meet ASME B30.20-1993 standards.
Starting at: $759.07

See chart below and click a model number

Product Details

  • Size: Models have 8" to 117" minimum spread and 72" to 141" maximum spread, 16". The units are available with headroom of 15-3/4" to 25-1/2".
  • Weight: The Spreader Beam comes in weights of 82 up to 508 lbs.
  • Capacity: These units are available in capacities of 2,500 to 10,000 lbs.
  • Options: Additional upper and lower bail loops are available as Spreader Beam options. The bail loops are designed for each specific model; see chart for details.
  • Note: Testing, adjustments, training and scheduled maintenance procedures by others.

Documents


Options


Bear Claw® Spreader Beam - BSBM Series
Model No. Min. Spread Max. Spread Upper Bail (W x L) Lower Bail (W x L) Headroom Capacity (LBS) Price
1) BSBM-25 8" 6' 2½"x5" 1½"x4½" 14" 2,500 $1,093.22
2) BSBM-40 8" 6' 3"x5½" 2"x4" 14¾" 4,000 $1,378.61
3) BSBM-80 8" 8' 4"x7¼" 3"x5¼" 20¾" 8,000 $2,094.26
4) BSBM-BFB-100-10 24" 10' 4"x7½" 3"x5¾" 25½" 10,000 $1,920.69
Model No. Min. Spread Max. Spread Usable Bail (W x L) Headroom Capacity (LBS) Price
5) BSBM-40-3 21" 33" 3"x5" 14⅜" 4,000 $759.07
6) BSBM-40-4 33" 45" 3"x5" 14⅜" 4,000 $782.05
7) BSBM-40-6 45" 69" 3"x5" 15⅜" 4,000 $935.50
8) BSBM-40-8 69" 93" 3"x5" 18⅜" 4,000 $1,116.30
9) BSBM-40-12 117" 141" 3"x5" 18⅜" 4,000 $1,723.23
10) BSBM-60-3 21" 33" 3"x5" 15-11/16" 6,000 $900.51
11) BSBM-60-4 33" 45" 3"x5" 15-11/16" 6,000 $935.41
12) BSBM-60-6 45" 69" 3"x5" 18-11/16 6,000 $1,111.83
13) BSBM-60-8 69" 93" 3"x5" 18-11/16" 6,000 $1,270.61
14) BSBM-60-10 93" 117" 3"x5" 18-11/16" 6,000 $1,316.80
15) BSBM-60-12 117" 141" 3"x5" 18-11/16" 6,000 $2,028.59
Model No. Min. Spread Max. Spread Overall Size (W x L x H) Capacity (LBS) Price
16) BSBM-40-BLB 16" 72" 78"x14½" x18¾" 4,000 $1,195.36
OPTION
Model No. Description Price
17) BSM-LB-25 Additional Lower Bail Loop for BSBM-25 $230.36
18) BSM-UB-25 Additional Upper Bail Loop for BSBM-25 $237.56
19) BSM-LB-40 Additional Lower Bail Loop for BSBM-40 $232.20
20) BSM-UB-40 Additional Upper Bail Loop for BSBM-40 $239.66
21) BSM-LB-80 Additional Lower Bail Loop for BSBM-80 $233.89
22) BSM-UB-80 Additional Upper Bail Loop for BSBM-80 $241.44
