Overhead Pallet Lift

Overhead Pallet Lift - BHDP series

Bear Claw® BHDP Series

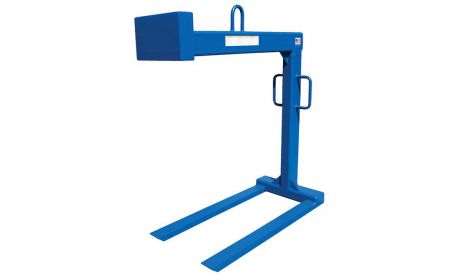

The Overhead Pallet Lift is designed to turn cranes into an aerial forklift. This series is ideal for use during construction, in ship loading, with open-top trucks, or barges. Units contain tapered forks to allow access under pallets. The main support has handles to enable operators to position the unit. The large square head works as a counterweight to keep the unit level without a load. This series meets ASME B30.20 Standard 1993.
Starting at: $1,972.15

See chart below and click a model number

Product Details

  • Construction: Solid steel construction.
  • Size: Available with a variety of fork lengths ranging from 36" to 54" and with overall fork widths of 25", 27", or 30". The unit comes with a variety of fork sizes ranging from 2" wide x 2" high to 6" wide x 2" high.
  • Color: This Overhead Pallet Lift series is painted Beacon blue.
  • Weight: Weights range from 421 to 985 lbs.
  • Note: Every unit is shipped with a certificate of testing.
  • Capacity: Units are available with 2,000 lb., 4,000 lb., or 6,000 lb. capacities.
  • Options: An optional adjustable bail is available for the Overhead Pallet Lift.
  • Surcharge: Tariffs or surcharges may apply to current published pricing.

Bear Claw® Overhead Pallet Lift - BHDP Series
Model No. Fork Length Overall Fork Width Fork Size (W x H) Bail (W x H) Capacity (LBS) Price
1) BHDP-2-36 36" 25" 2"x2" 3"x5" 2,000 $1,972.15
2) BHDP-2-42 42" 25" 2"x2" 3"x5" 2,000 $2,074.15
3) BHDP-2-48 48" 25" 2"x2" 3"x5" 2,000 $2,142.95

4) BHDP-4-36 36" 25" 4"x2" 3"x5" 4,000 $2,391.95
5) BHDP-4-42 42" 25" 4"x2" 3"x5" 4,000 $2,549.58
6) BHDP-4-48 48" 25" 4"x2" 3"x5" 4,000 $2,843.68

7) BHDP-6-42 42" 25" 6"x2" 4"x7" 6,000 $3,142.93
8) BHDP-6-48 48" 27" 6"x2" 4"x7" 6,000 $3,638.29
9) BHDP-6-54 54" 30" 6"x2" 4"x7" 6,000 $3,936.39
OPTION
Model No. Description Price
10) BHDP-AB Adjustable Bail $140.35


Complementary Products: For pallet-transporting equipment that allows loads to be weighed while being hauled, please see Beacon pallet trucks with scale.
