Fork Truck Hook Plates

Fork Truck Hook Plates - BLM series

Bear Claw® BLM-HP Series

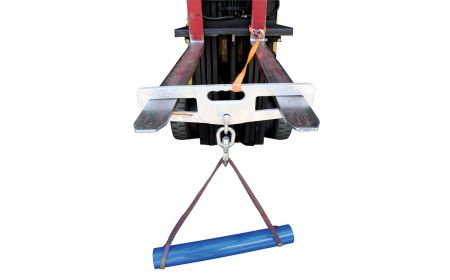

Fork Truck Hook Plates allow fork trucks to safely lift a load using slings, cables, or chains. These models have slanted, 6-1/2" wide x 1-3/4" high fork openings, which keep them from being utilized upside-down. These units feature either swivel or rigid hook types. Model BLM-HP10-SL has forks measuring 7" x 2" and includes a swivel lifting hook with a latch.
Starting at: $254.36

See chart below and click a model number

Product Details

  • Size: The models range from 13-5/8" to 20-3/8" high and have a 24" or 25" overall width.
  • Weight: Fork Truck Hook Plates come in weights of 26 or 27 lbs.
  • Capacity: This series is available with capacities of either 4,000, 6,000, or 10,000 lbs.
  • Standard: Hook with anchor shackle comes standard with the Fork Truck Hook Plates.
  • Note: Testing, adjustments, training and scheduled maintenance procedures by others.

Documents



Bear Claw® Fork Truck Hook Plates - BLM-HP Series
Model No. Overall Height Overall Width Capacity (LBS) Hook Type Note Price
1) BLM-HP4-S 13⅝" 24" 4,000 Swivel A $265.16
2) BLM-HP4-R 12⅛" 24" 4,000 Rigid A $254.36

3) BLM-HP6-S 15" 24" 6,000 Swivel A $306.02

Bear Claw® Fork Truck Hook Plates - BLM-HP Series (continued)

Model No. Overall Height Overall Width Capacity (LBS) Hook Type Note Price
4) BLM-HP10-SL 20⅜" 25" 10,000 Swivel A $495.66
Notes:
A: Swivel Hook with Shackle Included
