Low Rack Guards

Low Rack Guards - Safety Rack Protector - BLPRO series

Beacon® BLPRO Series

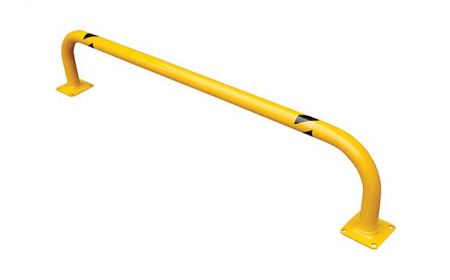

The Low Rack Guards - Safety Rack Protector is designed to protect pallet racking, personnel, and equipment from damage. These units may be installed inside or outside. This series features two base plates per unit with four pre-drilled mounting holes per plate.
Starting at: $96.56

See chart below and click a model number

Product Details

  • Construction: Units feature heavy-duty welded steel construction.
  • Size: Low Rack Guards are either 9" or 16" high and 1-5/8" or 4-1/2" in outside diameter. Lengths are available from 36" to 144".
  • Color: Units are available either with a Beacon yellow powder coat finish or a polished 304 stainless steel finish.
  • Options: Low Rack Guards concrete anchor bolts are not included.

Documents


Options


Low Rack Guards - BLPRO Series
Model No. Powder Coat Finish Height Length Outside Diameter Number of Base Plates Number of Bolts Required Ships Via Price
1) BLPRO-36-9-2 Yellow 9" 36" 1⅝" 2 8 UPS $96.56
2) BLPRO-48-9-2 Yellow 9" 48" 1⅝" 2 8 UPS $120.75
3) BLPRO-36-16-2 Yellow 16" 36" 1⅝" 2 8 UPS $124.05
4) BLPRO-48-16-2 Yellow 16" 48" 1⅝" 2 8 UPS $142.13

5) BLPRO-36-9-4 Yellow 9" 36" 4½" 2 8 UPS $164.64
6) BLPRO-48-9-4 Yellow 9" 48" 4½" 2 8 UPS $183.65
7) BLPRO-60-9-4 Yellow 9" 60" 4½" 2 8 Truck $280.62
8) BLPRO-72-9-4 Yellow 9" 72" 4½" 2 8 Truck $345.27
9) BLPRO-92-9-4 Yellow 9" 92" 4½" 2 8 Truck $650.16
10) BLPRO-144-9-4 Yellow 9" 144" 4½" 2 8 Truck $485.88
11) BLPRO-36-16-4 Yellow 16" 36" 4½" 2 8 UPS $187.79
12) BLPRO-48-16-4 Yellow 16" 48" 4½" 2 8 UPS $212.05
OPTION
Model No. Description Thread/Sleeve Diameter Overall Length Sleeve Length For Use with Model Price
13) BAS-383 Concrete Anchor Bolts Installation Hardware (Single) ⅜" 3" 1" 1⅝" Diameter BLPRO series $12.09
14) BAS-344 Concrete Anchor Bolts (Single) ¾" 4¼" 2" 4½" Diameter BLPRO series $13.44

15) BAS-383-4PK Concrete Anchor Bolts (4 Pack) ⅜" 3" 1" 1⅝" Diameter BLPRO series $17.47
16) BAS-344-4PK Concrete Anchor Bolts (4 Pack) ¾" 4¼" 2" 4½" Diameter BLPRO series $26.90
