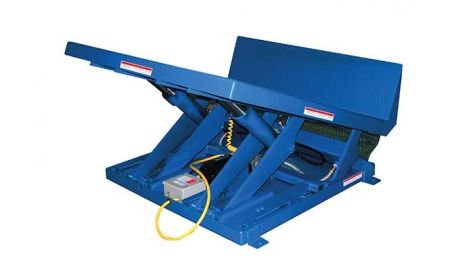

Lift and Tilt Table

Beacon® BUNI Series

The popular Lift and Tilt Table is designed to place containers within ergonomically optimal reach of machine operators and assembly line personnel. The design of the Assembly Line Tilter units lessens worker fatigue by minimizing repetitive stretching and bending that normally occurs when reaching into containers. The platform has a 12" high lip on tilt side. Units must be lagged to floor.
Starting at: $3,775.78

Product Details

  • Size: The series comes with a variety of platform sizes ranging from 24" wide x 48" long to 96" wide x 48" long.
  • Overall Width: Models feature an overall width ranging from 24" to 96".
  • Overall Length: Models feature an overall length from 51-1/4" to 52".
  • Electrical: Units feature 2HP, 460V, 3 Phase, 60Hz standard. Models are also available with 115V, 208V, or 230V and either 1 or 3 phase. Contact Beacon for other electrical options.
  • Color: Models are either Beacon blue or Beacon yellow.
  • Weight: Lift and Tilt Table models are available in a variety of weights ranging from 631 to 1,384 lbs.
  • Operation: One hydraulic cylinder controls the deck tilt movement. The selector pedal allows users to either lift and tilt simultaneously, or tilt and then lift.
  • Capacities: A 96" x 48" platform will hold two 48" x 48" containers.
  • Capacity: Models feature a 2,000, 4,000, or 6,000-lb. capacity.
  • Standard: Standard features include a pressure compensated flow valve, totally enclosed motor, integrated maintenance lock, lowering valve, pressure plated pump, independent oil return, adjustable travel switch, and 2-button hand control.
  • Options: Lift and Tilt Table options include single or dual foot switches, three-sided accordion skirting, radio remote control, wall-mount controls, electrical options, and wash-down power packages. Contact Beacon for more options.
  • Warranty: One-year structural, hydraulics, and electrical.

Lift and Tilt Table - BUNI Series
Model# Color Capacity (LBS) Platform Size (W x L) Level Height Max. Degree of Tilt Voltage / Phase Price
1) BUNI-2448-4 Blue 4,000 24"x48" 8" 40 460/3 $4,019.51

2) BUNI-3648-2-YEL Yellow 2,000 36"x48" 8" 40 460/3 $3,775.78
3) BUNI-3648-2-YEL-115-1 Yellow 2,000 36"x48" 8" 40 115/1 $3,802.11
4) BUNI-3648-2-YEL-208-3 Yellow 2,000 36"x48" 8" 40 208/3 $3,802.11
5) BUNI-3648-2-YEL-230-1 Yellow 2,000 36"x48" 8" 40 230/1 $3,802.11
6) BUNI-3648-2-YEL-230-3 Yellow 2,000 36"x48" 8" 40 230/3 $3,802.11
7) BUNI-3648-2-YEL-460-3 Yellow 2,000 36"x48" 8" 40 460/3 $3,802.11

8) BUNI-3648-4 Blue 4,000 36"x48" 8" 40 460/3 $4,102.39
9) BUNI-3648-4-YEL Yellow 4,000 36"x48" 8" 40 460/3 $4,102.39
10) BUNI-3648-4-YEL-115-1 Yellow 4,000 36"x48" 8" 40 115/1 $4,217.10
11) BUNI-3648-4-YEL-208-3 Yellow 4,000 36"x48" 8" 40 208/3 $4,217.10
12) BUNI-3648-4-YEL-230-1 Yellow 4,000 36"x48" 8" 40 230/1 $4,217.10
13) BUNI-3648-4-YEL-230-3 Yellow 4,000 36"x48" 8" 40 230/3 $4,217.10
14) BUNI-3648-4-YEL-460-3 Yellow 4,000 36"x48" 8" 40 460/3 $4,217.10

Lift and Tilt Table - BUNI Series (continued)

Model# Color Capacity (LBS) Platform Size (W x L) Level Height Max. Degree of Tilt Voltage / Phase Price
15) BUNI-4848-2-YEL Yellow 2,000 48"x48" 8" 40 460/3 $3,854.89
16) BUNI-4848-2-YEL-115-1 Yellow 2,000 48"x48" 8" 40 115/1 $3,969.37
17) BUNI-4848-2-YEL-208-3 Yellow 2,000 48"x48" 8" 40 208/3 $3,969.37
18) BUNI-4848-2-YEL-230-1 Yellow 2,000 48"x48" 8" 40 230/1 $3,969.37
19) BUNI-4848-2-YEL-230-3 Yellow 2,000 48"x48" 8" 40 230/3 $3,969.37

20) BUNI-4848-4 Blue 4,000 48"x48" 8" 40 460/3 $4,180.12
21) BUNI-4848-4-YEL Yellow 4,000 48"x48" 8" 40 460/3 $4,180.12
22) BUNI-4848-4-YEL-208-3 Yellow 4,000 48"x48" 8" 40 208/3 $4,294.83
23) BUNI-4848-4-YEL-230-1 Yellow 4,000 48"x48" 8" 40 230/1 $4,294.83
24) BUNI-4848-4-YEL-230-3 Yellow 4,000 48"x48" 8" 40 230/3 $4,294.83

25) BUNI-4848-6 Blue 6,000 48"x48" 8" 40 460/3 $6,065.38
26) BUNI-4848-6-YEL Yellow 6,000 48"x48" 8" 40 460/3 $6,065.38
27) BUNI-4848-6-YEL-115-1 Yellow 6,000 48"x48" 8" 40 115/1 $6,180.09
28) BUNI-4848-6-YEL-208-3 Yellow 6,000 48"x48" 8" 40 208/3 $6,180.09
29) BUNI-4848-6-YEL-230-1 Yellow 6,000 48"x48" 8" 40 230/1 $6,180.09
30) BUNI-4848-6-YEL-230-3 Yellow 6,000 48"x48" 8" 40 230/3 $6,180.09
31) BUNI-4848-6-YEL-460-3 Yellow 6,000 48"x48" 8" 40 460/3 $6,180.09

Lift and Tilt Table - BUNI Series (continued)

Model# Color Capacity (LBS) Platform Size (W x L) Level Height Max. Degree of Tilt Voltage / Phase Price
32) BUNI-5448-2-YEL Yellow 2,000 54"x48" 8" 40 460/3 $4,202.56
33) BUNI-5448-2-YEL-115-1 Yellow 2,000 54"x48" 8" 40 115/1 $4,317.27
34) BUNI-5448-2-YEL-208-3 Yellow 2,000 54"x48" 8" 40 208/3 $4,317.27
35) BUNI-5448-2-YEL-230-1 Yellow 2,000 54"x48" 8" 40 230/1 $4,317.27
36) BUNI-5448-2-YEL-230-3 Yellow 2,000 54"x48" 8" 40 230/3 $4,317.27
37) BUNI-5448-2-YEL-460-3 Yellow 2,000 54"x48" 8" 40 460/3 $4,317.27

38) BUNI-5448-4 Blue 4,000 54"x48" 8" 40 460/3 $4,531.92
39) BUNI-5448-4-YEL Yellow 4,000 54"x48" 8" 40 460/3 $4,531.92
40) BUNI-5448-4-YEL-115-1 Yellow 4,000 54"x48" 8" 40 115/1 $4,646.63
41) BUNI-5448-4-YEL-208-3 Yellow 4,000 54"x48" 8" 40 208/3 $4,646.63
42) BUNI-5448-4-YEL-230-1 Yellow 4,000 54"x48" 8" 40 230/1 $4,646.63
43) BUNI-5448-4-YEL-230-3 Yellow 4,000 54"x48" 8" 40 230/3 $4,646.63
44) BUNI-5448-4-YEL-460-3 Yellow 4,000 54"x48" 8" 40 460/3 $4,646.63

45) BUNI-5448-6 Blue 6,000 54"x48" 8" 40 460/3 $6,504.18
46) BUNI-5448-6-YEL Yellow 6,000 54"x48" 8" 40 460/3 $6,504.18
47) BUNI-5448-6-YEL-115-1 Yellow 6,000 54"x48" 8" 40 115/1 $6,618.66
48) BUNI-5448-6-YEL-208-3 Yellow 6,000 54"x48" 8" 40 208/3 $6,618.66
49) BUNI-5448-6-YEL-230-1 Yellow 6,000 54"x48" 8" 40 230/1 $6,618.66
50) BUNI-5448-6-YEL-230-3 Yellow 6,000 54"x48" 8" 40 230/3 $6,618.66
51) BUNI-5448-6-YEL-460-3 Yellow 6,000 54"x48" 8" 40 460/3 $6,618.66

Lift and Tilt Table - BUNI Series (continued)

Model# Color Capacity (LBS) Platform Size (W x L) Level Height Max. Degree of Tilt Voltage / Phase Price
52) BUNI-9648-4 Blue 4,000 96"x48" 8" 40 460/3 $6,990.38

TM
Call Beacon: 800 454-7159
