Ground Tilters

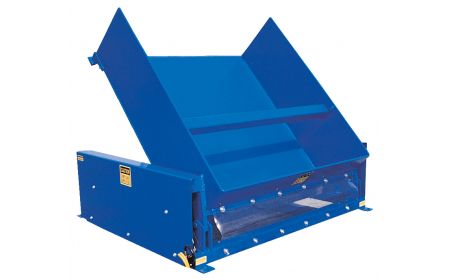

Ground Tilters - Floor Industrial Parts Tilter - BGLT-4000 Series

Beacon® BGLT-4000 Series

The hydraulic Ground Tilters are excellent for tilting applications that require a pallet truck for loading and unloading. Designed and utilized as a Floor Industrial Parts Tilter for low profile applications allowing ground mount for pallet jack assess. To increase worker safety, pinch points are provided on the 4 sides of each model.
Starting at: $5,574.26

See chart below and click a model number

Product Details

  • Size: These models have a platform size of 48" wide x 50" long.
  • Electrical: 460 V AC, 3 Phase, 60 Hertz is Standard. (Optional electrical changes are available including Voltage, Phase and Hertz at an additional charge).
  • Power: Ground Tilters - Floor Tilt Table are powered by a remote 2 Hp, 208-230/460 V motor with a protective cover. The remote power unit is 24" wide x 24" long x 8" high.
  • Weight: The Ground Tilters weigh 1,315 lbs.
  • Operation: This unit is operated with a standard hand control.
  • Capacity: This series has a 4,000-lb. capacity.
  • Options: Ground Tilters have an optional foot control.
  • Warranty: To keep the warranty valid you cannot cantilever the geometric ratio weight beyond the center of gravity. All Hydraulic Tilt Tables are quoted the capacity within its deck size.
  • Surcharge: Tariffs or surcharges may apply to current published pricing.

Ground Tilters - BGLT-4000 Series
Model No. Platform Size (W x L) Capacity (LBS) Degree of Tilt Power Unit Price
1) BGLT-4000 48"x50" 4,000 45 External $5,574.26

Call Beacon: 800-454-7159
