Corner Tilting

Name: Corner Tilting
Brand: Beacon
Price: 6055.97 USD
Availability: InStock

Corner Tilting - Hydraulic Angle Tilter - BEMC Series

Beacon® BEMC Series

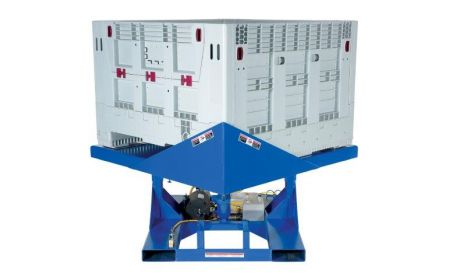

The portable Corner Tilting unit works to reduce repetitive motion injuries and to lessen worker fatigue. The Hydraulic Angle Tilter is designed to tilt crates, boxes, or baskets 30 degrees. This unit has built in fork tubes designed to ease portability with a fork truck. This series also features water-resistant, push-button control.

Starting at: $6,055.97

See chart below and click a model number

Product Details

Size: Available with platform sizes of 42" wide x 42" long x 24" high or 48" wide x 48" long x 24" high.
Electrical: This product is AC powered with 2 Hp motor. 480 V AC, 3 Phase, 60 Hz is standard. Other electrical options are available.
Color: Corner Tilting units have a painted blue finish
Weight: Models have weights of 750, 800, or 850 lbs.
Capacity: Features capacities of 2,000 or 4,000 lbs.
Limited Warranty: To keep the Corner Tilting warranty valid you cannot cantilever the geometric ratio weight beyond the center of gravity. All units are quoted the capacity within its deck size.
Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
Note: Testing, adjustments, training and scheduled maintenance procedures by others.

Documents

Corner Tilting - BEMC Series
Model No.	Platform Size (W x L)	Capacity (LBS.)	Degree of Tilt	Price
1) BEMC-4242-2	42"x42"x24"	2,000	30	$6,286.03
2) BEMC-4242-4	42"x42"x24"	4,000	30	$6,468.03
3) BEMC-4848-2	48"x48"x24"	2,000	30	$6,055.97
4) BEMC-4848-4	48"x48"x24"	4,000	30	$6,338.24
