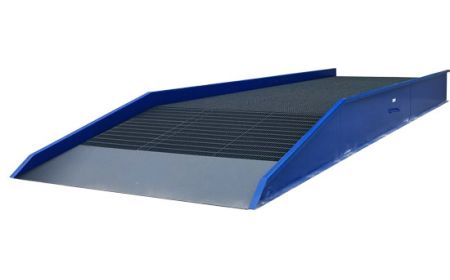

Browse 3 ProductsTruck Lift Ramps
Beacon® BTLR Series
Truck Lift Ramps are designed to cover the width of the dock door. The BTLR Series features a long level platform, raising box trucks and vans to a level surface meeting the loading dock height, filling the height gap creating a smoother transition.
Starting at:
$28,757.14
Product Details
- Construction: Heavy duty steel construction built for years of service.
- Service Range: The units are available in different heights ranging from 6" to 24", meeting the requirements of different dock heights for different trucks and vans.
- Overall Width: The single unit is available from 84" to 144' overall width servicing a wide variety of trucks and vans.
- Capacities: Different modles are available in a range of 20,000 lbs. minimum to 80,000 lbs per ramp.
- Standard: Truck Lift Ramps are designed with run off 6" fall protection safety curbs.
- Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
- Note: No hydraulics or motors to service, Maintenance free.
| Truck Lift Ramps - BTLR Series | |||||||||
| Model No. | Capacity (LBS) | Width | Useable Width | Overall Length | Top Length | Incline Length | Ramp Height | Safety Curb Height | Price |
| 1) BTLR6120360 | 80,000 lbs. | 120" | 114" | 360" | 324" | 36" | 6" | 8" on Left & Right Sides | $28,757.14 |
| 2) BTLR6120432-BTR6120396-EXT | 80,000 lbs. | 120" | 114" | 828" | 792" | 36" | 6" | 8" on Left & Right Sides | $56,426.32 |
| 3) BTLR12120398 | 80,000 lbs. | 120" | 114" | 398" | 324" | 74" | 12" | 8" on Left & Right Sides | $33,593.12 |
| 4) BTLR12120470-BTLR12120396-EXT | 80,000 lbs. | 120" | 114" | 866" | 792" | 74" | 12" | 8" on Left & Right Sides | $62,333.56 |
| 5) BTLR18120436 | 80,000 lbs. | 120" | 114" | 436" | 324" | 112" | 18" | 8" on Left & Right Sides | $37,569.32 |
| 6) BTLR18120508-BTLR18120396-EXT | 80,000 lbs. | 120" | 114" | 904" | 792" | 112" | 18" | 8" on Left & Right Sides | $66,913.56 |
| 7) BTLR24120474 | 80,000 lbs. | 120" | 114" | 474" | 324" | 150" | 24" | 8" on Left & Right Sides | $41,367.43 |
| 8) BTLR24120546-BTLR24120396-EXT | 80,000 lbs. | 120" | 114" | 942" | 792" | 150" | 24" | 8" on Left & Right Sides | $71,362.78 |
