Truck Wheel Riser Ramps

Beacon® Truck Wheel Riser Ramps

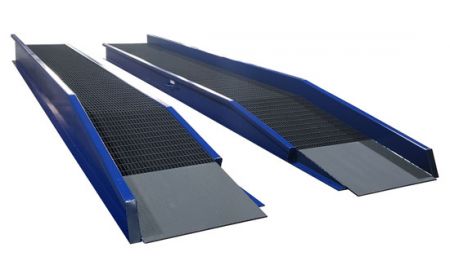

Twin Truck Wheel Riser Ramps are designed to be positioned for your specific truck and van width requirements at the dock door. Features a long level platform, raising box trucks and vans to a level surface meeting the loading dock height, filling the height gap creating a smoother transition.
Starting at: $4,598.92

See chart below and click a model number

Product Details

  • Construction: Truck Wheel Riser Ramps are manufatured of heavy duty steel grating with plate steel construction built for years of service.
  • Service Range: The pair of ramps are available in different heights ranging from 6" to 24", meeting the requirements of different dock heights for different trucks and vans.
  • Overall Width: Each unit has 42" overall width, allowing positioning for a variety of trucks and vans.
  • Capacities: Different modles are available in a range of 20,000 lbs. minimum per pair to 80,000 lbs per pair.
  • Capacity: The set of Truck Wheel Riser Ramps maximum capacity is 40,000 lbs per unit to 80,000 lbs per pair.
  • Standard: Designed with run off 6" fall protection safety curbs.

Truck Wheel Riser Ramps
Model No. Capacity (LBS) Each Pair Capacity (LBS) Each Width Usable Width Overall Length Top Length Incline Length Ramp Height Safety Curb Height Price
1) BTR-12.542293-L / BTR-12.542293-R 40,000 20,000 42" 36" 294" 216" 76" 12.5"   $10,176.00
2) BTR-1442293-L / BTR-1442293-R 40,000 20,000 42" 36" 328" 216" 112" 14"   $10,939.20

3) BTR642360-20-L 40,000 20,000 42" 36" 360" 324" 36" 6" 8" On Left $Call
4) BTR642360-20-R 40,000 20,000 42" 36" 360" 324" 36" 6" 8" On Right $Call
5) BTR642432-20-L-BTR642396-EXT 40,000 20,000 42" 36" 828" 792" 36" 6" 8" On Left $Call
6) BTR642432-20-R-BTR642396-EXT 40,000 20,000 42" 36" 828" 792" 36" 6" 8" On Right $Call

Truck Wheel Riser Ramps (continued)

Model No. Capacity (LBS) Each Pair Capacity (LBS) Each Width Usable Width Overall Length Top Length Incline Length Ramp Height Safety Curb Height Price
7) BTR1242398-20-L 40,000 20,000 42" 36" 398" 324" 74" 12" 8" On Left $Call
8) BTR1242198-20-R 40,000 20,000 42" 36" 398" 324" 74" 12" 8" On Right $Call
9) BTR1242470-20-L-BTR1242396-EXT 40,000 20,000 42" 36" 866" 792" 74" 12" 8" On Left $Call
10) BTR1242470-20-R-BTR1242396-EXT 40,000 20,000 42" 36" 866" 792" 74" 12" 8" On Right $Call

11) BTR1842436-20-L 40,000 20,000 42" 36" 436" 216" 112" 18" 8" On Left $Call
12) BTR1842436-20-R 40,000 20,000 42" 36" 436" 216" 112" 18" 8" On Right $Call
13) BTR1842508-20-L-BTR1842396-EXT 40,000 20,000 42" 36" 904" 792" 112" 18" 8" On Left $Call
14) BTR1842508-20-R-BTR1842396-EXT 40,000 20,000 42" 36" 904" 792" 112" 18" 8" On Right $Call

15) BTR2442474-20-L 40,000 20,000 42" 36" 474" 324" 150" 24" 8" On Left $Call
16) BTR2442474-20-R 40,000 20,000 42" 36" 474" 324" 150" 24" 8" On Right $Call
17) BTR2442546-20-L-BTR2442396-EXT 40,000 20,000 42" 36" 942" 792" 150" 24" 8" On Left $Call
18) BTR2442546-20-R-BTR2442396-EXT 40,000 20,000 42" 36" 942" 792" 150" 24" 8" On Right $Call

19) BTR642360-40-L 80,000 40,000 42" 36" 360" 324" 36" 6" 8" On Left $4,598.92
20) BTR642360-40-R 80,000 40,000 42" 36" 360" 324" 36" 6" 8" On Right $4,598.92
21) BTR642432-40-L-BTR642396-EXT 80,000 40,000 42" 36" 828" 792" 36" 6" 8" On Left $8,736.60
22) BTR642432-40-R-BTR642396-EXT 80,000 40,000 42" 36" 828" 792" 36" 6" 8" On Right $8,736.60

23) BTR1242398-40-L 80,000 40,000 42" 36" 398" 324" 74" 12" 8" On Left $5,705.24
24) BTR1242198-40-R 80,000 40,000 42" 36" 398" 324" 74" 12" 8" On Right $5,705.24
25) BTR1242470-40-L-TR1242396-EXT 80,000 40,000 42" 36" 866" 792" 74" 12" 8" On Left $10,517.85
26) BTR1242470-40-R-TR1242396-EXT 80,000 40,000 42" 36" 866" 792" 74" 12" 8" On Right $10,517.85

Truck Wheel Riser Ramps (continued)

Model No. Capacity (LBS) Each Pair Capacity (LBS) Each Width Usable Width Overall Length Top Length Incline Length Ramp Height Safety Curb Height Price
27) BTR1842436-40-L 80,000 40,000 42" 36" 436" 324" 112" 18" 8" On Left $6,363.82
28) BTR1842436-40-R 80,000 40,000 42" 36" 436" 324" 112" 18" 8" On Right $6,363.82
29) BTR1842508-40-L-BTR1842396-EXT 80,000 40,000 42" 36" 904" 792" 112" 18" 8" On Left $11,354.83
30) BTR1842508-40-R-BTR1842396-EXT 80,000 40,000 42" 36" 904" 792" 112" 18" 8" On Right $11,354.83

31) BTR2442474-40-L 80,000 40,000 42" 36" 474" 324" 150" 24" 8" On Left $7,100.94
32) BTR2442474-40-R 80,000 40,000 42" 36" 474" 324" 150" 24" 8" On Right $7,100.94
33) BTR2442546-40-R-BTR2442396-EXT 80,000 40,000 42" 36" 942" 792" 150" 24" 8" On Right $12,194.47
34) BTR2442546-40-L-BTR2442396-EXT 80,000 40,000 42" 36" 942" 792" 150" 24" 8" On Left $12,194.47
