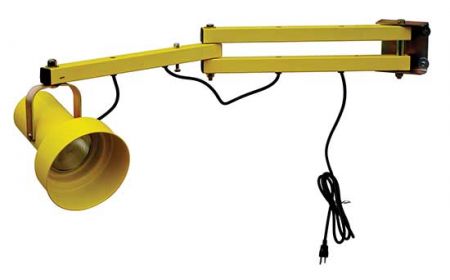

Loading Dock Spotlight

Beacon® B*DL Series

Loading Dock Spotlight - Warehouse Dock Lighting gives direct light inside the trailer truck during loading and unloading. Dock lights are an essential industrial safety practice. This safety light is ideal for industrial and commercial settings. Beacon loading lights are a safe, economical way to meet OSHA lighting requirements. Models BLL-SAI and BLL-SAF are ETL C/U.S. listed. All other models are UL listed. The incandescent BLL and BLL-SAI have a low replacement cost, an attractive color, and turn on immediately even when cold. These units feature an adjustable arm to horizontal and vertical positioning, bulbs sold separately. High pressure sodium BLLS and BAALLS have a long life and significantly more lumens per watt. They feature a low operating cost, but a yellow-colored light and require several minutes (or more in cold weather) to fully illuminate. Spun aluminum BLL-SAI and BLL-SAF have a “cool-touch” feature even with a 300-watt bulb. The strut arm is adjustable vertically and horizontally.
Starting at: $195.95

See chart below and click a model number

Product Details

  • Construction: Features steel construction.
  • Size: Models range in length from 24" to 90".
  • Electrical: 115 V AC, 1 Phase, 60 Hz is standard.
  • Installation: These units mount on the inside of a dock wall.
  • Color: This series is powder coated Beacon safety yellow for high visibility at loading docks.
  • Weight: Models weigh between 11 and 42 lbs. Options weigh between 1 and 78 lbs.
  • Operation: These models feature manual control and a rotating head.
  • Standard: Models BLL-HLGN and BLL-SAF include a bulb.
  • Options: Loading Dock Spotlight options include halogen and sodium bulbs, a sodium head, a wire guard, a grill/diffuser, a light stand, a fan, and a BLL-40 complete with attached fan. Select a model to view options.

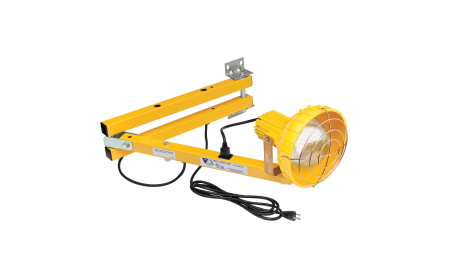

Loading Dock Spotlight - B*DL Series
Model No. Arm Style Arm Length Lamp Type Lamp Head Note Price
1) BDL24-P Double Strut 24" Incandescent Polycarbonate A $443.00
2) BDL40-P Double Strut 40" Incandescent Polycarbonate A $457.20
3) BDL60-P Double Strut 60" Incandescent Polycarbonate A $485.60
4) BDL90-P Double Strut 90" Incandescent Polycarbonate A $634.69
5) BDL114-P Double Strut 114" Incandescent Polycarbonate A $839.16
6) BDL24 Double Strut 24" Incandescent Metal A $247.06
7) BDL40 Double Strut 40" Incandescent Metal A $266.94
8) BDL60 Double Strut 60" Incandescent Metal A $296.75
9) BDL90 Double Strut 90" Incandescent Metal A $496.96
10) BDL114 Double Strut 114" Incandescent Metal A $607.47

11) BFLDL40-P Double Strut Flex Arm 40" Incandescent Polycarbonate A $577.89
12) BFLDL60-P Double Strut Flex Arm 60" Incandescent Polycarbonate A $594.93
13) BFLDL90-P Double Strut Flex Arm 90" Incandescent Polycarbonate A $742.61
14) BFLDL40 Double Strut Flex Arm 40" Incandescent Metal A $577.89
15) BFLDL60 Double Strut Flex Arm 60" Incandescent Metal A $594.93
16) BFLDL90 Double Strut Flex Arm 90" Incandescent Metal A $742.61

17) BDSDL40-P Double Strut Swing Arm 40" Incandescent Polycarbonate A $244.22
18) BDSDL60-P Double Strut Swing Arm 60" Incandescent Polycarbonate A $272.62
19) BDSDL90-P Double Strut Swing Arm 90" Incandescent Polycarbonate A $455.79
20) BDSDL114-P Double Strut Swing Arm 114" Incandescent Polycarbonate A $647.48
21) BDSDL40 Double Strut Swing Arm 40" Incandescent Metal A $278.30
22) BDSDL60 Double Strut Swing Arm 60" Incandescent Metal A $308.11
23) BDSDL90 Double Strut Swing Arm 90" Incandescent Metal A $511.16
24) BDSDL114 Double Strut Swing Arm 114" Incandescent Metal A $704.27

Loading Dock Spotlight - B*DL Series (continued)

Model No. Arm Style Arm Length Lamp Type Lamp Head Note Price
25) BSDL24-P Single Swing Arm 24" Incandescent Polycarbonate A $195.95
26) BSDL40-P Single Swing Arm 40" Incandescent Polycarbonate A $210.15
27) BSDL60-P Single Swing Arm 60" Incandescent Polycarbonate A $238.54
28) BSDL24 Single Swing Arm 24" Incandescent Metal A $214.41
29) BSDL40 Single Swing Arm 40" Incandescent Metal A $244.22
30) BSDL60 Single Swing Arm 60" Incandescent Metal A $276.88
Notes:
A: Bulbs Sold Separately

  OPTIONS:
1) Loading Dock Spotlight Options (1 items)




TM
Call Beacon: 800-454-7159314-487-7600
