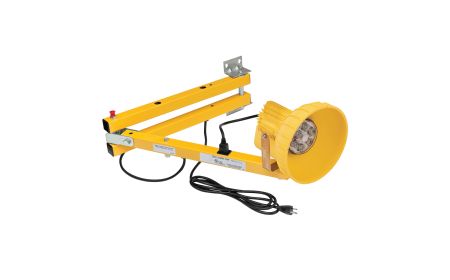

Beacon® LED Loading Light – BDSDL series

The LED Loading Light features a twin axis hinged, durable double strut swing arm that allows controlled deflection upon impact from forklifts or cargo, helping to prevent damage during busy dock operations. This rugged design ensures maximum stability and reliability for demanding loading dock environments.
Starting at: $351.75

See chart below and click a model number

Product Details

  • Models: The special twin axis design allows the arm to move and deflect when impacted by doors or forklifts, reducing stress on the fixture and helping to prevent damage to both the light and equipment during daily dock operations.
  • Construction: The LED Loading Light is available with heavy duty cast aluminum, polycarbonate, or steel light heads, all supported with the steel double strut arm.
  • Size: Lamp arm lengths are available in 40", 60", 90", or 114" options, allowing flexible positioning and reach to accommodate various dock door sizes and trailer configurations.
  • Electrical: UL and cUL listed.
  • Power: Many LED Loading Light models are available in 220/240 VAC configurations, making them ideal for international applications and facilities operating on global voltage standards.
  • Installation: Units mount to the wall.
  • Color: Units feature a Beacon yellow safety finish.
  • Standard: The bulb is included unless otherwise noted. Lamp cover included.
  • Options: Compatible with PL2 and HDL2 light heads when used with the BDL2 Adapter, allowing seamless integration and interchangeability across Beacon® dock lighting systems.
  • Note: Made in the USA.
LED Loading Light – BDSDL series
Model No. Arm Style Arm Length Lamp Head Style Lamp Type Watts Used Lumens Control Connection Price
1) BDSDL40-HDLED Double Strut Swing Arm 40" Heavy Duty Cast Aluminum LED Module 17.7 W 915     $643.41
2) BDSDL60-HDLED Double Strut Swing Arm 60" Heavy Duty Cast Aluminum LED Module 17.7 W 915     $662.98
3) BDSDL40-HDL2 Double Strut Swing Arm 40" Heavy Duty Cast Aluminum LED Module 16.3 W 1669     Call for Quote
4) BDSDL60-HDL2 Double Strut Swing Arm 60" Heavy Duty Cast Aluminum LED Module 16.3 W 1669     Call for Quote
5) BDSDL90-HDL2 Double Strut Swing Arm 90" Heavy Duty Cast Aluminum LED Module 16.3 W 1669     Call for Quote
6) BDSDL114-HDL2 Double Strut Swing Arm 114" Heavy Duty Cast Aluminum LED Module 16.3 W 1669     Call for Quote
7) BDSDL40-HDL2-S Double Strut Swing Arm 40" Heavy Duty Cast Aluminum LED Module 16.3 W 1669 Includes (ON) (OFF) Switch on head   Call for Quote
8) BDSDL60-HDL2-S Double Strut Swing Arm 60" Heavy Duty Cast Aluminum LED Module 16.3 W 1669 Includes (ON) (OFF) Switch on head   Call for Quote
9) BDSDL90-HDL2-S Double Strut Swing Arm 90" Heavy Duty Cast Aluminum LED Module 16.3 W 1669 Includes (ON) (OFF) Switch on head   Call for Quote
10) BDSDL114-HDL2-S Double Strut Swing Arm 114" Heavy Duty Cast Aluminum LED Module 16.3 W 1669 Includes (ON) (OFF) Switch on head   Call for Quote

11) BDSDL40-PL1 Double Strut Swing Arm 40" Polycarbonate LED Module 13.4 W 1331     $436.61
12) BDSDL60-PL1 Double Strut Swing Arm 60" Polycarbonate LED Module 13.4 W       $463.23
13) BDSDL90-PL1 Double Strut Swing Arm 90" Polycarbonate LED Module 13.4 W 1331     $604.34
14) BDSDL114-PL1 Double Strut Swing Arm 114" Polycarbonate LED Module 13.4 W 1331     $796.02
15) BDSDL40-PL2-DL2-ADPT Double Strut Swing Arm 40" Polycarbonate LED Module 13.4 W 1331   Adapter Cord for new Light Head to old arm. Call for Quote
16) BDSDL60-PL2-DL2-ADPT Double Strut Swing Arm 60" Polycarbonate LED Module 13.4 W 1331   Adapter Cord for new Light Head to old arm. Call for Quote
17) BDSDL90-PL2-DL2-ADPT Double Strut Swing Arm 90" Polycarbonate LED Module 13.4 W 1331   Adapter Cord for new Light Head to old arm. Call for Quote
18) BDSDL114-PL2-DL2-ADPT Double Strut Swing Arm 114" Polycarbonate LED Module 13.4 W 1331   Adapter Cord for new Light Head to old arm. Call for Quote
19) BDSDL40-PL2-DL2-S-ADPT Double Strut Swing Arm 40" Polycarbonate LED Module 13.4 W 1331   Adapter Cord for new Light Head to old arm. Call for Quote
20) BDSDL60-PL2-DL2-S-ADPT Double Strut Swing Arm 60" Polycarbonate LED Module 13.4 W 1331 Includes (ON) (OFF) Switch on head Adapter Cord for new Light Head to old arm. Call for Quote
21) BDSDL90-PL2-DL2-S-ADPT Double Strut Swing Arm 90" Polycarbonate LED Module 13.4 W 1331 Includes (ON) (OFF) Switch on head Adapter Cord for new Light Head to old arm. Call for Quote
22) BDSDL114-PL2-DL2-S-ADPT Double Strut Swing Arm 114" Polycarbonate LED Module 13.4 W 1331 Includes (ON) (OFF) Switch on head Adapter Cord for new Light Head to old arm. Call for Quote

23) BDSDL40-ML1 Double Strut Swing Arm 40" Metal LED Module 14 W 1330     $508.49
24) BDSDL60-ML1 Double Strut Swing Arm 60" Metal LED Module 14 W 1330     $521.81
25) BDSDL90-ML1 Double Strut Swing Arm 90" Metal LED Module 14 W 1330     $677.55
26) BDSDL114-ML1 Double Strut Swing Arm 114" Metal LED Module 14 W 1330     $865.25

LED Loading Light – BDSDL series (continued)
Model No. Arm Style Arm Length Lamp Head Style Lamp Type Watts Used Lumens Control Connection Price
27) BDSDL40-PLED Double Strut Swing Arm 40" Polycarbonate PAR38 LED 15 W       $351.75
28) BDSDL60-PLED Double Strut Swing Arm 60" Polycarbonate PAR38 LED 15 W       $373.05
29) BDSDL90-PLED Double Strut Swing Arm 90" Polycarbonate PAR38 LED 15 W       $514.14
30) BDSDL114-PLED Double Strut Swing Arm 114" Polycarbonate PAR38 LED 15 W       $693.85
31) BDSDLHPS40-PFS Double Strut Swing Arm 40" Polycarbonate Food Service High Pressure Sodium 13.4 W 1331     $512.49
32) BDSDLHPS60-PFS Double Strut Swing Arm 60" Polycarbonate Food Service High Pressure Sodium 13.4 W 1331     $551.09
33) BDSDLHPS90-PFS Double Strut Swing Arm 90" Polycarbonate Food Service High Pressure Sodium 13.4 W 1331     $725.47
