Commercial Floor Fans

Commercial Floor Fans - BMB series

Beacon® BMB Series

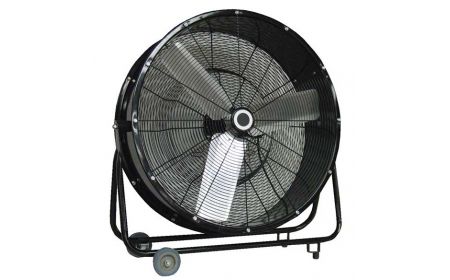

The Commercial Floor Fans are a type of drum fan that are designed for use in dry and clean applications. These units do not have totally enclosed motors. This series meets OSHA standards and is UL listed. Units feature either a rocker switch (BMB-C-30) or a rotary switch (BMB-RS-C-36).
Starting at: $495.70

See chart below and click a model number

Product Details

  • Size: Units have a blade diameter of either 30" or 36".
  • Power: These Commercial Floor Fans feature a 2-speed, 1/3 HP, 115V, single phase, ball bearing motor which is permanently lubricated. Units feature 3.6 amps on high and either 6300 or 8200 CFM on high and 5500 or 7,000 CFM on low.
  • Weight: 60 or 70 lbs.
  • Standard: This Commercial Floor Fans series comes standard with 6' long SJT type 3 conductor cord.
  • Surcharge: Tariffs or surcharges may apply to current published pricing.

Documents



Commercial Floor Fans - BMB Series
Model No. Blade Diameter Amps High CFM High CFM Low Motor HP Voltage Phase Speeds Cord Length Wheel Type Price
1) BMB-C-30 30" 3.6 6300 5500 1/3 115V Single 2 6' Swivel $495.70
2) BMB-RS-C-36 36" 3.6 8200 7000 1/3 115V Single 2 6' Stationary $577.21
