Air Curtain

Name: Air Curtain
Brand: Beacon

Beacon® BACURT Series

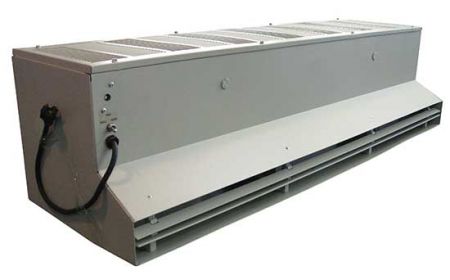

The Air Curtain helps reduce energy loss as well as the loss of cold air through warehouse doors and entry doorways. These units are also useful in maintaining a clean environment and reducing the amount of outside particles getting inside.

Call for custom quote for your application

See chart below and click a model number

Product Details

Construction: Units feature 20 gauge rigid steel cabinets.
Size: Models are available to fit doors up to 120" wide and 12' high.
Power: This series is powered by a 3/4 HP heavy duty, PSC, direct drive motor that is signed for use with SCR controllers. Motors feature thermal overload protection and a long life. CFM ranges from 819 to 2544 on low and from 2672 to 9955 on high.
Color: This Air Curtain series features a beige baked-on epoxy powder coat paint.
Weight: Units weigh from 77 to 239 lbs.
Standard: An SCR controller with low end adjustment for air volume control and energy savings is included with all compatible units.
Options: Contact Beacon about heating options for the Air Curtain BACURT series.
Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.

Documents

Prop. 65 WARNING

Air Curtain - BACURT Series
Model No.	Doorway Size (W x H)	Overall Size (W x D x H)	CFM High	CFM Low	Motor HP	Voltage	Price
1) BACURT-36	36"x12'	36"x13"x16"	2672	819	¾	115V	Call for Quote
2) BACURT-48	48"x12'	48"x13"x16"	4611	906	¾	115V	Call for Quote
3) BACURT-60	60"x12'	60"x13"x16"	5763	1126	¾	115V	Call for Quote
4) BACURT-72	72"x12'	72"x13"x16"	5344	1638	¾	115V	Call for Quote
5) BACURT-96	96"x12'	96"x13"x16"	9222	1812	¾	115V	Call for Quote
6) BACURT-108	108"x12'	108"x13"x16"	8016	2457	¾	115V	Call for Quote
7) BACURT-120	120"x12'	120"x13"x16"	9955	2544	¾	115V	Call for Quote
