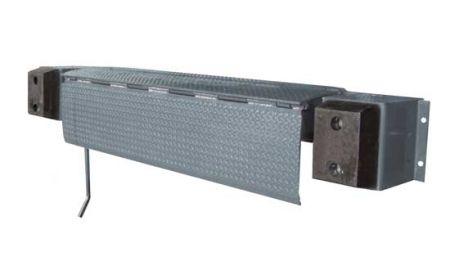

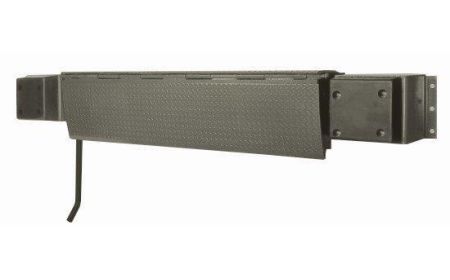

Browse 28 ProductsMechanical Edge of Dock Leveler
Beacon® BBLE Series
The standard Mechanical Edge of Dock Leveler compensates for uneven heights between dock and truck. This is commonly used in distribution centers. These Beacon Mechanical Edge of Dock Leveler units are durable and heavy-duty. The BBLE dock leveler operates with a convenient push-over bar lift system featuring an integrated extension spring lift-assist mechanism. This design allows the operator to easily tilt the dock leveler rearward and smoothly position the lip onto the truck bed, reducing lifting effort while improving loading dock safety and efficiency.
Starting at:
$2,453.29
Product Details
- Construction: This series is constructed with a 2" distribution bar and two gussets and operates with an extension spring.
- Size: These Short Dock Leveler units feature deck widths of 66" and 72". All models have a span of 27-3/4".
- Operating Range: Features 5" above and 5" below the loading dock as operating range.
- Installation: Edge of dock levelers must be securely anchored to a structural support such as an embedded channel, steel angle, or approach plate to properly absorb lateral forces during operation. Confirm your specific dock configuration so Beacon can recommend and quote the correct anchoring solution for safe, industry standard installation. Also confirm if your application is new, replacement or rehab construction.
- Color: Finish - Enamel base gray paint.
- Capacities: Models are available in capacities of 20,000 and 25,000 lbs.
- Standard: Each Mechanical Edge of Dock Leveler unit comes standard with a 15" hinged lip as well as dock bumpers. Dock heights of 48" to 52" are required for the installation of this Mechanical Edge of Dock unit to properly service a tractor trailer.
- Limited Warranty: 1 year limited warranty. Extended warranties available.
- Note: There is no pit work required. The unit simply welds to the building 8" imbedded channel or to the optional formed angle and approach plate.
| Mechanical Edge of Dock Leveler - BBLE Series | |||||||
| Model No. | Capacity | Span | Lip | Overall Width | Deck Width | Note | Price |
| 1) BBLE-6620 | 20,000 LBS | 27¾" | 15" | 104" | 66" | A | $2,453.29 |
| 2) BBLE-7220 | 20,000 LBS | 27¾" | 15" | 110" | 72" | A | $2,584.89 |
| 3) BBLE-6625H | 25,000 LBS | 27¾" | 15" | 104" | 66" | A | $2,829.61 |
| 4) BBLE-7225H | 25,000 LBS | 27¾" | 15" | 110" | 72" | A | $2,981.78 |
Mechanical Edge of Dock Leveler - BBLE Series (continued) |
|||||||
| Model No. | Capacity | Span | Lip | Overall Width | Deck Width | Note | Price |
| 5) BBLE-6630H | 30,000 Lbs | 27¾" | 15" | 104" | 66" | A | $3,064.04 |
| 6) BBLE-7230H | 30,000 LBS | 27¾" | 15" | 110" | 72" | A | $3,133.95 |
| Notes: A: Requires 28 lbs. to 34 lbs. of push pull force to engage. | |||||||
PROP 65 WARNING
For California Residents: www.P65Warnings.ca.gov
Products on this page may lead to cancer or reproductive harm.
|
OPTIONS: 1) Edge of Dock Levelers Accessories (30 items) |
