Browse 28 ProductsEconomy Edge of Dock Leveler
Beacon® BED Series

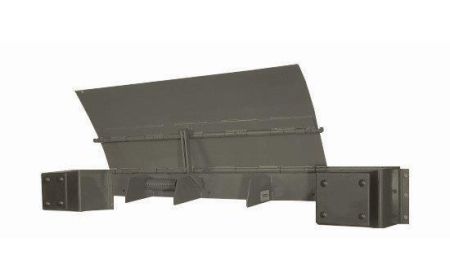

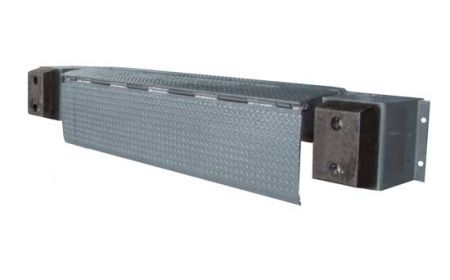

The distribution center Economy Edge of Dock Leveler with lift hook engagement spans between the dock and the truck bed during loading and unloading. The BED series Economy Edge of Dock Leveler requires approximately 80 lbs. of lifting force to engage the leveler.
Starting at:
$2,358.45
Product Details
- Construction: This unit is constructed with a 2" distribution bar and three gussets.
- Size: Models feature deck widths of 66", 72", 78" or 84". All units have a span of 27-3/4".
- Operating Range: Features 5" above and 5" below the loading dock as operating range.
- Installation: Edge of dock levelers must be securely anchored to a structural support such as an embedded channel, steel angle, or approach plate to properly absorb lateral forces during operation. Confirm your specific dock configuration so Beacon can recommend and quote the correct anchoring solution for safe, industry standard installation. Also confirm if your application is new, replacement or rehab construction.
- Color: Finish - Enamel base gray paint.
- Capacities: Available in capacities of 20,000, 25,000, and 30,000 lbs.
- Standard: Each Economy Edge of Dock unit comes with a 15" hinged lip as well as dock bumpers. Dock heights of 48" to 52" are required for installation of the Economy Edge of Dock and to properly service a tractor trailer.
- Note: There is no pit work required. Units simply weld to the building 8" imbedded channel or to the optional formed angle and approach plate.
| Economy Edge of Dock Leveler - BED Series | ||||||
| Model No. | Span | Capacity | Overall Width | Deck Width | Note | Price |
| 1) BED-6620M | 27¾" | 20,000 lbs. | 104" | 66" | A | $2,358.45 |
| 2) BED-7220M | 27 ¾in | 20,000 lbs. | 110" | 72" | A | $2,561.01 |
| 3) BED-7820M | 27¾" | 20,000 lbs. | 116" | 78" | A | $3,094.30 |
| 4) BED-8420M | 27¾" | 20,000 lbs. | 122" | 84" | A | $3,216.25 |
| 5) BED-6625MH | 27¾" | 25,000 lbs. | 104" | 66" | A | $2,844.19 |
| 6) BED-7225MH | 27¾" | 25,000 lbs. | 110" | 72" | A | $2,997.15 |
| 7) BED-7825MH | 27¾" | 25,000 lbs. | 116" | 78" | A | $3,193.52 |
| 8) BED-8425MH | 27¾" | 25,000 lbs. | 122" | 84" | A | $3,431.22 |
| 9) BED-6630MHX | 27¾" | 30,000 lbs. | 104" | 66" | A | $2,922.74 |
| 10) BED-7230MHX | 27¾" | 30,000 lbs. | 110" | 72" | A | $3,083.96 |
| 11) BED-7830MHX | 27¾" | 30,000 lbs. | 116" | 78" | A | $3,538.70 |
| 12) BED-8430MHX | 27¾" | 30,000 lbs. | 122" | 84" | A | $3,761.94 |
| Notes: A: Requires approximately 80 lbs of lifting force with the hook to engage the leveler. | ||||||
