Dock Warning Barriers

Dock Warning Barriers - BDWB series

Beacon® BDWB Series

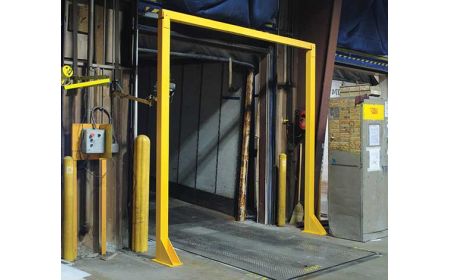

The Dock Warning Barriers are designed as a light duty unit to protect overhead doors at loading docks from fork truck and other vehicle damage. These units are designed as a visual warning, not to stop fork trucks. This series does not interfere with overhead door operation or use.
Starting at: $1,360.99

See chart below and click a model number

Product Details

  • Construction: Dock Warning Barriers feature steel uprights and a 4" x 4" wooden beam across the unit's top. Wooden beam is easily replaced after damage.
  • Size: Different size units are available to fit useable door widths ranging from 8' wide x 8' high to 10' wide x 10' high.
  • Color: This series is painted an OSHA-compliant Beacon safety yellow for extra visibility at the loading dock.
  • Weight: Different model weights range from 395 lbs. to 505 lbs.
  • Options: The Dock Warning Barriers offer concrete anchor bolts that are sold separately.

Documents


Options


Dock Door Warning Barriers - BDWB Series
Model No. Useable Door Width Usable Door Height Wooden Beam Painted Finish Bolts Required Price
1) BDWB-88 8' 8' 4"x4" Safety Yellow 8 $1,360.99
2) BDWB-810 8' 10' 4"x4" Safety Yellow 8 $1,469.00
3) BDWB-910 9' 10' 4"x4" Safety Yellow 8 $1,503.95
4) BDWB-1010 10' 10' 4"x4" Safety Yellow 8 $1,581.91
OPTION
Model No. Description Sleeve Diameter Overall Length Sleeve Length Price
5) BAS-125 Concrete Anchor Bolt (1) ½" 5½" 3" $11.42
6) BAS-125-4PK Concrete Anchor Bolt (4 Pack) ½" 5½" 3" $21.60
