Loading Dock Shelters

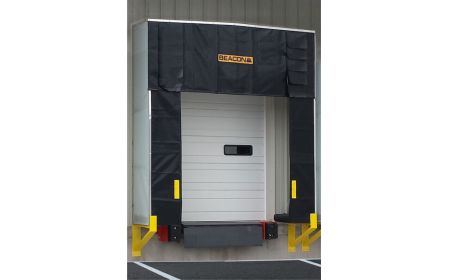

Beacon® with Manual Pulley System Adjustable Curtain BD-750-42-PS Series

Loading Dock Shelters are designed for trucks to be raised at the loading dock.

Call for custom quote for your application

See chart below and click a model number

Construction: Loading Dock Shelters are constructed with treated wood structural frame, fiberglass side construction allows light in for visibility. Supplied with steel base supports. Full height front curtain with fiberglass supports.
Projection: Overall dock shelter 42" projection allow for the 52" head curtain to adjust back when raising for taller truck height adjustments.
Color: Black shelter material with yellow guide stripes. Steel supports are yellow.
Operation: Pulley adjustable head curtain allows for adjustment on standard or taller truck heights.
Materials: 48 oz vinyl coated nylon.

Loading Dock Shelters - with Manual Pulley System Adjustable Curtain BD-750-42-PS Series
Model No.	Door Opening (Wide x High) Size	Shelter Height	Curtain Height	Curtain Adjustment	Door Seal Projection	Material Type	Material Thickness	Wall Set Back	Dock Height	Price
1) BD-750-42-PS	10'x10'	151"	52"	Pulley rope system	42"	Vinyl Coated Nylon	48 oz	0"	48"	Call for Quote
