Guardrail Systems - Structural Guard Rails - BST-GR series

Beacon® BST-GR Series

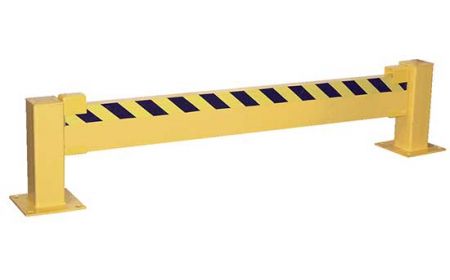

Guardrail Systems are designed for use in parking garages, warehouses, distribution centers, machine shops, and factories. These Structural Guard Rails protect both personnel and equipment visually. They can be utilized inside or outside and are perfect for a visual protective barrier. The tubular posts are designed for continuous or perpendicular rail mounting. These units are removable for easy access.
Starting at: $157.33

See chart below and click a model number

Product Details

  • Construction: The units are constructed of C-channel at 11.5 lbs. per foot.
  • Size: The models have an overall height of 8" and are available in 48", 72", 96", 120", and 144" lengths. Custom lengths are available; contact Beacon for further assistance.
  • Installation: Each post will come with one bracket. Additional brackets are available as an option. The posts are supplied with one inserted threaded stud on the side of the post. Welded brackets are an option.
  • Color: Powder coated Beacon yellow.
  • Options: Tubular posts for mounting Guardrail Systems are purchased individually. The posts have threaded studs on three sides of the post. Additional brackets are available to create a continuous run or a 90 degree turn. Concrete anchor kits sold separately.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.

Documents

Options

Guardrail Systems - BST-GR Series
Model No. Design Height Length Base Plate Price
1) BGR-STC8-DI-4-YL Drop-in "C" Channel 8" 48" 10"x10" $157.33
2) BGR-STC8-DI-6-YL Drop-in "C" Channel 8" 72" 10"x10" $213.94
3) BGR-STC8-DI-8-YL Drop-in "C" Channel 8" 96" 10"x10" $283.98
4) BGR-STC8-DI-10-YL Drop-in "C" Channel 8" 120" 10"x10" $354.02
5) BGR-STC8-DI-12-YL Drop-in "C" Channel 8" 144" 10"x10" $390.20
