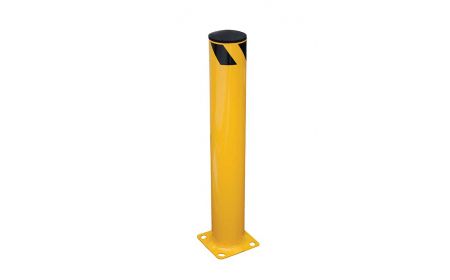

Steel Bollards - Pipe Posts - BBOL series by Beacon Industries

Beacon® BBOL Series

These safety Steel Bollards are utilized for indoor and outdoor security applications. Pipe Posts protect personnel, shoppers, work areas, commercial window fronts, roadways, or equipment environments from unwanted vehicle traffic access. This unit helps restrict protected areas for parking lots, sidewalks, side and front of building exterior and interiors. They are commonly used at dock doors and personnel doors. May reduce insurance premiums–check with your insurance representative regarding your bollard application program.
Starting at: $68.75

See chart below and click a model number

Product Details

  • Construction: Steel Bollards are constructed of heavy-duty welded steel.
  • Size: Models are available in various heights ranging from 24" to 72". Outer diameters range from 1-3/4" to 8-1/2".
  • Installation: Concrete anchor bolts are sold separately in packs of 1 or 4. (BBOL-xx2 receives 3/8" anchor sleeve diameter), (BBOL-xx4.5, BBOL-xx5.5, BBOL-xx6.5 and BBOL-xx8.5 receives 3/4" anchor sleeve diameter). Customer must determine correct length for anchoring application.
  • Color: Units are powder coated with a Beacon safety yellow or Beacon red finish. Many other color options are available; contact Beacon for details.
  • Weight: Models weigh from 5 to 63 lbs. Special sizes available.
  • Standard: Base plates include four pre-drilled mounting holes.
  • Options: Steel Bollards are available with or without caps. Rubber caps are removable on the 4-1/2" and 5-1/2" diameter units. Steel caps are welded on the 1-3/4" diameter units. Mounting kits and replacement caps are available.

Documents

Options

Steel Bollards - BBOL Series
Model No. Powder Coat Height Diameter Base Plate (W x L) Price
1) BBOL-36-6.5 Yellow 36" 6.5" 8"x8" $166.19
2) BBOL-42-6.5 Yellow 42" 6.5" 8"x8" $222.02
3) BBOL-48-6.5 Yellow 48" 6.5" 8"x8" $207.72
4) BBOL-62-6.5 Yellow 62" 6⅝" 8"x8" $245.08
5) BBOL-72-6.5 Yellow 72" 6⅝" 8"x8" $300.94

6) BBOL-36-8.5 Yellow 36" 8.5" 10"x10" $242.25
7) BBOL-42-8.5 Yellow 42" 8.5" 10"x10" $243.59
8) BBOL-48-8.5 Yellow 48" 8.5" 10"x10" $246.46

9) BBOL-24-5.5 Yellow 24" 5.5" 8"x8" $94.54
10) BBOL-24-5.5-RED Red 24" 5.5" 8"x8" $94.41
11) BBOL-36-5.5 Yellow 36" 5.5" 8"x8" $124.52
12) BBOL-36-5.5-RED Red 36" 5.5" 8"x8" $124.52
13) BBOL-42-5.5 Yellow 42" 5.5" 8"x8" $133.13
14) BBOL-42-5.5-RED Red 42" 5.5" 8"x8" $133.26
15) BBOL-48-5.5 Yellow 48" 5.5" 8"x8" $203.55
16) BBOL-62-5.5 Yellow 62" 5.5" 8"x8" $223.56
17) BBOL-72-5.5 Yellow 72" 5.5" 8"x8" $290.93

Steel Bollards - BBOL Series (continued)
Model No. Powder Coat Height Diameter Base Plate (W x L) Price
18) BBOL-24-4.5 Yellow 24" 4.5" 8"x8" $87.42
19) BBOL-24-4.5-RED Red 24" 4.5" 8"x8" $87.40
20) BBOL-36-4.5 Yellow 36" 4.5" 8"x8" $101.58
21) BBOL-36-4.5-RED Red 36" 4.5" 8"x8" $101.61
22) BBOL-42-4.5 Yellow 42" 4.5" 8"x8" $118.79
23) BBOL-42-4.5-RED Red 42" 4.5" 8"x8" $118.95
24) BBOL-48-4.5 Yellow 48" 4.5" 8"x8" $169.15
25) BBOL-62-4.5 Yellow 62" 4.5" 8"x8" $209.15
26) BBOL-72-4.5 Yellow 72" 4.5" 8"x8" $270.88

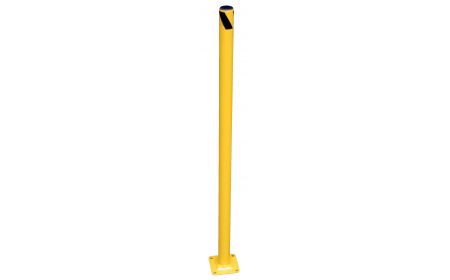

27) BBOL-24-2 Yellow 24" 1.75" 4"x4" $68.75
28) BBOL-36-2 Yellow 36" 1.75" 4"x4" $84.46
29) BBOL-42-2 Yellow 42" 1.75" 4"x4" $97.34
30) BBOL-48-2 Yellow 48" 1.75" 4"x4" $101.60
OPTION
Model No. Description Sleeve Diameter Overall Length Sleeve Length For Use With Price
31) BAS-383 Concrete Anchor Bolts Installation Hardware (Single) ⅜" 3" 1" BBOL-24-2, BBOL-36-2, BBOL-42-2, BBOL-48-2 utilizes ⅜" anchor dimeter sleeve. $12.39
32) BAS-344 Concrete Anchor Bolts Installation Hardware (Single) ¾" 4¼" 2" BBOL-xx4.5, BBOL-xx5.5, BBOL-xx6.5 and BBOL-xx8.5 utilizes ¾" anchor diameter sleever. $13.77
33) BAS-346 Concrete Anchor Bolts Installation Hardware (Single) ¾" 6¼" 3" BBOL-xx4.5, BBOL-xx5.5, BBOL-xx6.5 and BBOL-xx8.5 utilizes ¾" anchor diameter sleever. $16.53
34) BAS-383-4PK Concrete Anchor Bolts Installation Hardware (4-Pack) ⅜" 3" 1" BBOL-24-2, BBOL-36-2, BBOL-42-2, BBOL-48-2 utilizes ⅜" anchor dimeter sleeve. $17.90
35) BAS-344-4PK Concrete Anchor Bolts Installation Hardware (4-Pack) ¾" 4¼" 2" BBOL-xx4.5, BBOL-xx5.5, BBOL-xx6.5 and BBOL-xx8.5 utilizes ¾" anchor diameter sleever. $27.57
36) BAS-346-4PK Concrete Anchor Bolts Installation Hardware (4-Pack) ¾" 6¼" 3" BBOL-xx4.5, BBOL-xx5.5, BBOL-xx6.5 and BBOL-xx8.5 utilizes ¾" anchor diameter sleever. $48.13
