Aluminum Yard Ramp

Beacon® BAY Series

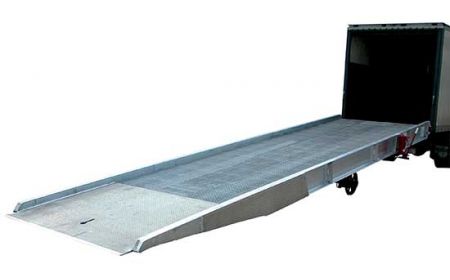

The Aluminum Yard Ramp - Semi Truck Ramps with aluminum grating allow workers to efficiently load and unload trucks, trailers, and other vehicles when no dock is available. One worker is able to position and then employ the unit from ground level. These movable units feature 18" x 5" mold-on-rubber tires for easy portability.
Starting at: $15,745.46

Product Details

  • Construction: These units are constructed of heavy-duty aluminum and feature rust-resistant aluminum grating and 4" high curbs.
  • Size: These models are available in a variety of sizes, with overall widths of 47", 86", or 95", usable widths of 66", 78", or 87" and lengths of 30' or 36'.
  • Service Range: This series has a service height range of 45" to 62".
  • Weight: Models come in a variety of weights ranging from 2,783 to 4,200 lbs.
  • Operation: Features a hand pump hydraulic lift.
  • Capacity: Available with capacities of 16,000, 20,000, 25,000, or 30,000 lbs.
  • Standard: A fork tow bar loop, anchor chains, hand pump hydraulic lift, and safety pressure relief valve are standard.
  • Options: Aluminum Yard Ramp options can be viewed on the main Yard Ramps page and include a 12V DC hydraulic lift, fork positioning loop, tow bar hitch, hand railings, 6" curbs (in place of 4" curbs), yellow safety curbs, pneumatic tires, and lag holes.
  • Surcharge: Tariffs or surcharges may apply to current published pricing.

Documents

WARNING This product can expose you to lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm.
For more information go to: www.P65Warnings.ca.gov

Options


Aluminum Yard Ramp with Aluminum Grating - BAY Series
Model# Capacity (LBS) Overall Width Usable Width Length Price
1) BAY-167230 16,000 74" 66" 30' $15,745.46
2) BAY-167236-L 16,000 74" 66" 36' $18,903.05
3) BAY-168430 16,000 86" 78" 30' $17,152.19
4) BAY-168436-L 16,000 86" 78" 36' $20,715.96
5) BAY-169330 16,000 95" 87" 30' $19,234.24
6) BAY-169336-L 16,000 95" 87" 36' $27,445.89

7) BAY-207230 20,000 74" 66" 30' $16,960.33
8) BAY-207236-L 20,000 74" 66" 36' $19,788.10
9) BAY-208430 20,000 86" 78" 30' $19,236.65
10) BAY-208436-L 20,000 86" 78" 36' $22,489.71
11) BAY-209330 20,000 95" 87" 30' $23,153.12
12) BAY-209336-L 20,000 95" 87" 36' $27,768.73

13) BAY-257230 25,000 74" 66" 30' $18,001.41
14) BAY-257236-L 25,000 74" 66" 36' $20,371.83
15) BAY-258430 25,000 86" 78" 30' $19,932.23
16) BAY-258436-L 25,000 86" 78" 36' $23,034.06
17) BAY-259330 25,000 95" 87" 30' $24,634.72
18) BAY-259336-L 25,000 95" 87" 36' $29,557.71

Aluminum Yard Ramp with Aluminum Grating - BAY Series (continued)

Model# Capacity (LBS) Overall Width Usable Width Length Price
19) BAY-307230 30,000 74" 66" 30' $19,628.51
20) BAY-307236-L 30,000 74" 66" 36' $23,104.12
21) BAY-308430 30,000 86" 78" 30' $22,583.70
22) BAY-308436-L 30,000 86" 78" 36' $26,404.81
