Steel Yard Ramp

Steel Yard Ramp - Mobile Yard Ramp - BYR series

Beacon® BYR Series

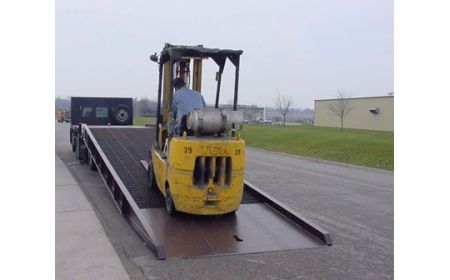

The Steel Yard Ramp - Mobile Yard Ramp enable workers to load and unload trucks, trailers, and rail cars from ground level at buildings that don't have a freight dock. This unit is operated with a 2-speed hand crank. These models feature 9" steel wheels, 4" high safety curbs, positive traction open steel grating, a 15" overlap lip, rubber bumpers, and safety locking chains.
Starting at: $22,716.61

See chart below and click a model number

Product Details

  • Construction: Features welded steel construction.
  • Size: Available in lengths of 30', 36, or 40'', in usable ramp widths of 67" or 78" and in various overall ramp widths ranging from 72" to 85".
  • Service Range: The unit's service range is 45" to 62".
  • Overall Width: For maximum overall width, add 19" to overall ramping width.
  • Color: Painted neutral Beacon earth-tone brown.
  • Weight: The models are available in various weights ranging from 3,780 to 6,720 lbs.
  • Capacities: These units come with service capacities of 16,000, 20,000, 25,000, or 30,000 lbs.
  • Standard: This series includes crank mechanism and landing gear.
  • Options: For greater mobility, optional tow package with large pneumatic tires and hydraulic hand pump is for yard movement at 5 mph maximum. A high speed tow package includes towing capacity up to 45 mph maximum. Other Steel Yard Ramp options available.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
  • Note: All 30' ramps include a 30' ramp length, 36' ramps include a 30' ramp length and 6' level off, and 40' ramps include a 30' ramp length and 10' level off.

Documents


Options


Steel Yard Ramp - BYR Series
Model No. Capacity (LBS) Overall Width Usable Width Length Price
1) BYR-16-7230 16000 72" 66" 30' $22,716.61
2) BYR-16-8430 16000 84" 78" 30' $24,110.57
3) BYR-16-7236 16000 72" 66" 36' $23,557.38
4) BYR-16-8436 16000 84" 78" 36' $27,065.53

5) BYR-20-7330 20000 73" 66" 30' $23,150.35
6) BYR-20-8530 20000 85" 78" 30' $25,918.17
7) BYR-20-7336 20000 73" 66" 36' $26,101.31
8) BYR-20-8536 20000 85" 78" 36' $29,427.69

9) BYR-25-7330 25000 73" 66" 30' $24,282.37
10) BYR-25-8530 25000 85" 78" 30' $26,882.36
11) BYR-25-7336 25000 73" 66" 36' $27,178.66
12) BYR-25-8536 25000 85" 78" 36' $31,671.34

Steel Yard Ramp - BYR Series (continued)

Model No. Capacity (LBS) Overall Width Usable Width Length Price
13) BYR-30-7330 30000 73" 66" 30' $25,835.46
14) BYR-30-8530 30000 85" 78" 30' $27,922.87
15) BYR-30-7336 30000 73" 66" 36' $30,306.62
16) BYR-30-8536 30000 85" 78" 36' $31,962.75

17) BYR-30-8540 30000 85" 78" 40' $25,986.96
