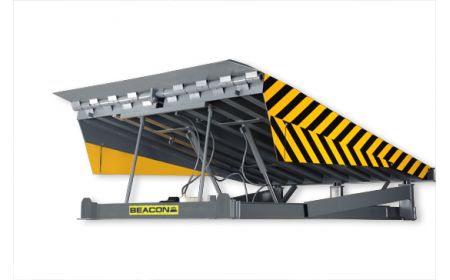

Long Dock Leveler

Beacon® BEH5 Series

This model of Long Dock Leveler is designed with nominal lengths up to 12' to create less grade angle. This series is ideal for either low docks for standard over the road trucks or to compensate for refrigerated trucks or containers on shipping service. The long deck creates a safe working environment and reduces impact on substructure during the loading and unloading process.
Starting at: $13,247.94

Product Details

  • Construction: Heavy duty steel construction.
  • Service Range: Service range is 12" above dock and 12" below dock for a total of 24" vertical travel working range.
  • Overall Width: Designed with overall widths up 97" wide to allow for wide loads on flatbeds.
  • Overall Length: Available with lengths up to 12' nominal for extra long smooth transitions from dock to truck service.
  • Powered: The Long Dock Leveler deck is raised with hydraulic dual lift cylinders with a one lip cylinder. Driven by a hydraulic motor pump reservoir self contained unit for easy access mounted to the sub frame.
  • Color: Beacon Industrial Grey.
  • Operation: Wall mounted push button control station box.
  • Capacities: The BEH5 series is rated up to 60,000 lbs static / 30,000 lbs dynamic capacity.
  • Standard: Full Range safety toe guards.
  • Options: Painted safety yellow and black strips on entire side of the Long Dock Leveler safety toe guards.
  • Warranty: Five-year structural and cylinders and one year pump and motor. Extended warranties available.

Long Dock Leveler - BEH5 Series
Model# Capacity Width Height Length Price
1) BEH561120 20,000 72" 23½" 11' $13,247.94
2) BEH561220 20,000 72" 23½" 12' $13,572.30
3) BEH561120.5 20,000 78" 23½" 11' $13,399.31
4) BEH561220.5 20,000 78" 23½" 12' $13,723.67
5) BEH571120 20,000 83" 23½" 11' $13,572.30
6) BEH571220 20,000 83" 23½" 12' $13,896.66
7) BEH581120 20,000 96" 23½" 11' $14,545.38
8) BEH581220 20,000 96" 23½" 12' $15,302.22

9) BEH561130 30,000 72" 23½" 11' $13,410.12
10) BEH561230 30,000 72" 23½" 12' $13,680.42
11) BEH561130.5 30,000 78" 23½" 11' $13,561.49
12) BEH561230.5 30,000 78" 23½" 12' $13,831.79
13) BEH571130 30,000 83" 23½" 11' $13,734.48
14) BEH571230 30,000 83" 23½" 12' $14,004.78
15) BEH581130 30,000 96" 23½" 11' $14,599.44
16) BEH581230 30,000 96" 23½" 12' $15,410.34

Long Dock Leveler - BEH5 Series (continued)

Model# Capacity Width Height Length Price
17) BEH561140 40,000 72" 23½" 11' $13,572.30
18) BEH561240 40,000 72" 23½" 12' $13,788.54
19) BEH561140.5 40,000 78" 23½" 11' $13,723.67
20) BEH561240.5 40,000 78" 23½" 12' $13,939.91
21) BEH571140 40,000 83" 23½" 11' $13,896.66
22) BEH571240 40,000 83" 23½" 12' $14,977.86
23) BEH581140 40,000 96" 23½" 11' $14,761.62
24) BEH581240 40,000 96" 23½" 12' $15,518.46

25) BEH561150 50,000 72" 23½" 11' $13,734.48
26) BEH561250 50,000 72" 23½" 12' $13,896.66
27) BEH561150.5 50,000 78" 23½" 11' $13,885.85
28) BEH561250.5 50,000 78" 23½" 12' $14,048.03
29) BEH571150 50,000 83" 23½" 11' $15,140.04
30) BEH571250 50,000 83" 23½" 12' $15,302.22
31) BEH581150 50,000 96" 23½" 11' $15,464.40
32) BEH581150 50,000 96" 23½" 11' $15,626.58

33) BEH561160 60,000 72" 23½" 11' $13,842.60
34) BEH561260 60,000 72" 23½" 12' $14,004.78
35) BEH561160.5 60,000 78" 23½" 11' $13,993.97
36) BEH561260.5 60,000 78" 23½" 12' $15,237.35
37) BEH571160 60,000 83" 23½" 11' $15,248.16
38) BEH571260 60,000 83" 23½" 12' $15,410.34
39) BEH581160 60,000 96" 23½" 11' $17,042.07
40) BEH581260 60,000 96" 23½" 12' $17,585.85
