Tilt Lift - Lift and Tilt Cart - BCART series

Beacon® BCART-LT Series

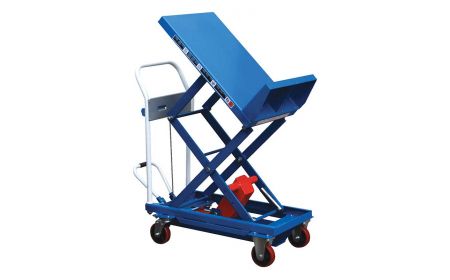

The Tilt Lift - Lift and Tilt Cart has a unique design that allows the user to raise and tilt materials to an ergonomic position for better posture and operator comfort. The BCART-400-LT and BCART-600-LT models raise and tilt to a 45-degree angle at the same time at full elevation. BCART-500-LT tilts 35 degrees, and BCART-1000-LT and BCART-1000-LT-PSS tilt 40 degrees.
Starting at: $1,289.68

See chart below and click a model number

Product Details

  • Construction: Models feature either steel or partially stainless steel construction.
  • Size: Models are available with a variety of platform sizes. BCART-500-LT and both BCART-1000-LT models feature 2 rigid and 2 swivel 5" poly casters. BCART-400-LT and BCART-600-LT feature 2 rigid and 2 swivel 5" polyurethane casters with brakes.
  • Service Range: Units feature service ranges from lowered heights of 13" to raised heights of up to 36" .
  • Note: All lead times are approximate and are only estimates with no guarantee to a ship date.
  • Operation: The BCART-400-LT and BCART-600-LT are elevated by means of a foot actuated hydraulic cylinder. The BCART-500-LT and BCART-1000-LT feature a manual selector valve that is used to control the lift/lower sequence independently from the tilt sequence.
  • Capacity: 500 to 1,000 lbs.
  • Standard: All Tilt Lift models come standard with 6-1/2" on the BCART-LT series or 7" retaining lip on the BCART-1000-LT series.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred.
  • BCART - 400 - LT - 1 - Video
  • BCART - 400 - LT - 2 - Video

Documents



Tilt Lift with Sequence Select - Steel Construction - BCART-LT Series
Model No. Capacity (LBS) Platform Size (W x L) Raised Height Lowered Height Degree of Tilt Price
1) BCART-400-LT 400 19½"x30" 31" 13" 45 $1,289.68
2) BCART-500-LT 500 21½"x40" 36" 16½" 35 $3,203.41
3) BCART-600-LT 600 24"x36" 35" 14" 45 $1,684.49
4) BCART-1000-LT 1,000 22x33⅝" 35" 17½" 40 $1,940.53
