Stacker Hand Truck

Name: Stacker Hand Truck
Brand: Beacon
Price: 6713.54 USD
Availability: InStock

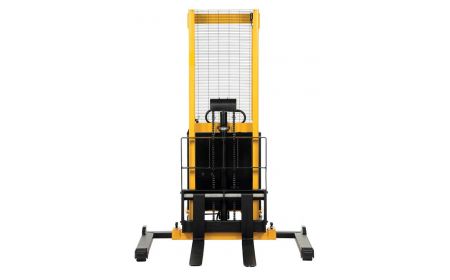

Stacker Hand Truck - Walkie Pallet Lifter - BSL series by Beacon Industries

Beacon® BSL-AA Series

The Stacker Hand Truck - Walkie Pallet Lifter features the ability to raise and lower products quick and easy. This unit has the ability to raise much higher than the standard pallet truck. Units feature a standard pulling handle which facilitates easy maneuvering. An available option to reduce worker fatigue and injury is the Power Traction Drive System (PTDS).

Starting at: $6,713.54

See chart below and click a model number

Product Details

Construction: This series is designed with adjustable or fixed forks and adjustable or fixed support legs depending on the model you choose.
Service Range: Units have lowered heights of 1-3/8" up to 3-3/8" and raised heights from 63" up to 150".
Overall Length: The overall length of the fork measures 42 inches.
Overall Fork Width: Each unit has an overall fork width of 8" up to 26-3/4 ". Individual forks are 4" up to 5-9/10" wide.
Powered: Powerful 24V, 140Ah battery, includes charger and battery level gauge.
Operation: Manual push with power lift.
Capacity: 2,000 lbs.
Standard: Models with suffix -AA are able to lift both pallets and skids with open and closed bottoms. Models with suffix -FF work only with skids.
Options: The Stacker Hand Truck has optional hand controls, solid deck platforms, and power traction drive systems (factory installed) available.
Note: The PTDS includes: (1) 12V battery, an auto reverse emergency "belly switch", combination throttle / direction butterfly style controller, and an adjustable steering yoke.

Documents

Options

Stacker Hand Truck - Adjustable Forks & Support Legs - BSL-AA Series
Model No.	Service Range	Capacity (0" to 63")	Capacity (63" to 118")	Capacity (118" to 150")	For Use With	Price
1) BSL-63-AA	2⅛" to 63"	2,000 lbs.	-	-	Skids or Pallets	$7,500.15
2) BSL-118-AA	1⅜" to 118"	2,000 lbs.	1,500 lbs.	-	Skids or Pallets	$8,395.32
3) BSL-137-AA	1⅜" to 137"	2,000 lbs.	1,500 lbs.	1,000 lbs.	Skids or Pallets	$9,509.57
4) BSL-137-AA-PTDS	2⅛" to 137"	2,000 lbs	-	-	Skids or Pallets	$12,311.65
5) BSL-150-AA	2⅛" to 150"	2,000 lbs.	1,500 lbs.	118" to 137" 1,000 lbs. 137" to 150" 750 lbs.	Skids or Pallets	$10,015.24
Stacker Hand Truck - Fixed Forks over Fixed Support Legs - BSL-FF Series
Model No.	Service Range	Capacity (0" to 63")	Capacity (63" to 118")	Capacity (118" to 150")	For Use With	Price
6) BSL-63-FF	3⅜" to 63"	2,000 lbs.	-	-	Skids Only	$6,713.54
7) BSL-118-FF	3⅜" to 118"	2,000 lbs.	1,500 lbs.	-	Skids Only	$8,404.22
OPTION
Model No.	Description					Price
8) BSL-DK	Solid Platform					Call for Quote
9) BSL-HC	Hand Control					$337.53
