Manual Stacker - Hand Lift Pallet Jack - BA-LIFT-R series

Beacon® BA-LIFT Series

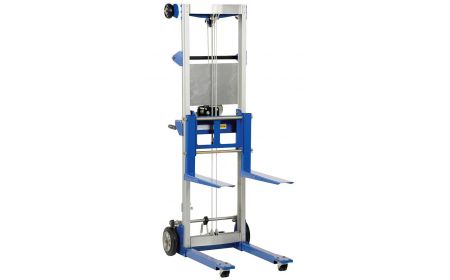

The Manual Stacker -Hand Lift Pallet Jack with fork over design feature a hand-crank winch with a reversible handle and hold down device for securing the carriage during transport. These units are designed for use with open bottom skids only. The forks can be inverted to provide two different heights. This series can be used for lifting objects to and from shelves, moving office equipment, and installing ceiling or wall appliances.
Starting at: $896.95

See chart below and click a model number

Product Details

  • Construction: Features steel and aluminum construction.
  • Size: This equipment is 24" wide x 35" long x 68" high.
  • Lowered Fork Height: These models have a lowered fork height of 3-1/2" and 23-1/2".
  • Raised Fork Height: The raised fork height is 67" or 117". Inverted fork heights are 47" or 97".
  • Overall Fork Width: The 4" wide, 1-3/4" thick steel forks are 20-1/2" wide overall.
  • Overall Fork Length: Forks are 22" long.
  • Weight: 136 or 140 lbs.
  • Operation: Operated by a hand-crank winch.
  • Capacity: 400 or 500 lbs.
  • Standard: This series comes standard with two 8" non-marking rear wheels and two 2" front swivel casters.
  • Options: An optional deck platform or 10" pneumatic wheels are available on the Manual Stacker. An optional ladder for BA-LIFT-Rand BA-LIFT-R-HP is also available.
  • Surcharge: Tariffs or surcharges may apply to current published pricing.

Manual Stacker - BA-LIFT Series
Model No. Capacity Lowered Height Raised Height Forks Down Raised Height Forks Up Overall Size (W x L x H) Price
1) BA-LIFT-R 500 3½" / 23½" 47" 67" 24"x35"x68" $896.95
2) BA-LIFT-R-HP 400 3½" / 23½" 97" 117" 24"x35"x68" $1,036.04
Model No. Description Size Price
3) BA-LIFT-DK Deck Platform 20½" Wx24¼" L $115.97
4) BA-LIFT-PN Pneumatic Rear Wheels 10" diameter $68.23
5) BA-LIFT-LAD Optional Ladder 20½" widex57½" tallx3" deep $336.46

What is a manual stacker? Read more about uses and applications.
